RG6

RG6 is a common type of coaxial cable used in a wide variety of residential and commercial applications. The term "RG6" itself is quite generic and refers to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type.it is generally used to refer to coaxial cables with an 18 AWG center conductor and 75 ohm characteristic impedance.

Key Benefits

  • High performance
  • High Quality
  • Lower attenuations
  • Easy installations
  • Lower Price

Applications

  • RF signal transmission
  • MATV, CATV, CCTV
  • Digital video applications
  • Drop in broadcast
  • Satellite systems

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
F660BV 1.02mm CCS conductor , 60% braid, PVC Jacket (White or Black) , Standard Shield 50-2150 F6 Compression, F6 BNC, F6 Crimp
F660BE 1.02mm CCS conductor , 60% braid, PE Jacket (Black only) , Standard Shield 50-2150 F6 Compression, F6 BNC, F6 Crimp,FF-FF
F660BEF 1.02mm CCS conductor , 60% braid, PE Jacket (Black only) ,Standard Shield, Flooded 50-2150 FF-FF,F6 Compression, F6 BNC, F6 Crimp

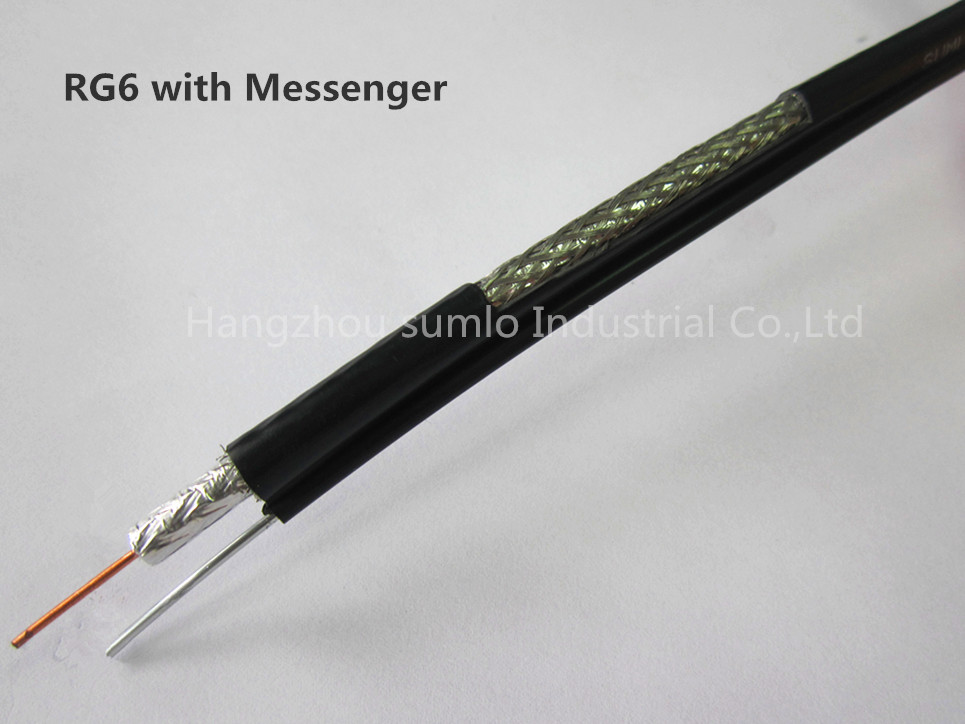

RG660BVM 1.02mm CCS conductor , 60% braid, PVC Jacket (Black only) , Standard Shield, Messengered 50-2150 F6 Compression, F6 BNC, F6 Crimp,FF-FF
F6770BV 1.02mm CCS conductor ,77% braid, PVC Jacket (White or Black), Standard Shield 50-2150 F6 Compression, F6 BNC, F6 Crimp,FF-FF
F690BV 1.02mm CCS conductor , 90% braid, PVC Jacket (White or Black) , Standard Shield 50-2150 F6 compression , F6 BNC, F6 Crimp,FF-FF
F690BE 1.02mm CCS conductor , 90% braid, PE Jacket (Black only) , Standard Shield 50-2150 F6 Compression, F6 BNC, F6 Crimp,FF-FF
F690BVM 1.02mm CCS conductor , 90% braid, PVC Jacket (Black only) , Standard Shield, Messengered 50-2150 F6 Compression, F6 BNC, F6 Crimp,FF-FF
F660TSV 1.02mm CCS conductor , 60% braid, PVC Jacket (White or Black) ,Tri Shield 50-2150 F6 compression , F6 BNC, F6 Crimp,FF-FF
F660TSVM 1.02mm CCS conductor , 60% braid, PVC Jacket (Black only) ,Tri Shield, Messengered 50-2150 F6 Compression, F6 BNC, F6 Crimp
F660TSEF  1.02mm CCS conductor , 60% braid, PE Jacket (Black only) ,Tri Shield, Messengered 50-2150 F6 Compression, F6 BNC, F6 Crimp

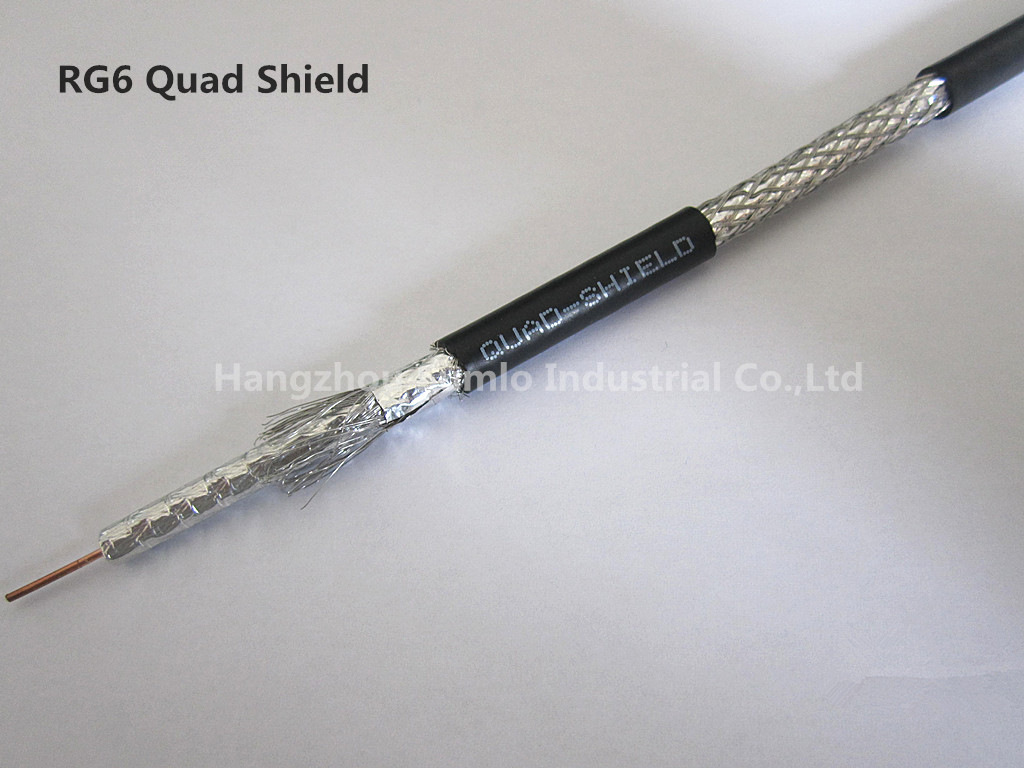

F660SSV 1.02mm CCS conductor , 60% +40% Double braid, PVC Jacket (White or Black) ,Quad Shield 50-2150 F6 Compression, F6 BNC, F6 Crimp
6F48BV 1.0mm CCS conductor , 35% braid, PVC Jacket (White or Black) 200-1000 F6 compression , F6 BNC, F6 Crimp,FF-FF
6F64BV 1.0mm CCS conductor, 40% braid, PVC Jacket (White or Black) 200-1000 F6 compression , F6 BNC, F6 Crimp,FF-FF
6F96BV 1.0mm CCS conductor , 60% braid, PVC Jacket (white or Black ) 200-1000 IECM-F6,IECF-FF, F6 Compression，F6 Crimp
RG6 CCTV 1.02mm BC Conductor, 95% TC braiding shield, PVC Jacket (White or Black), Headend cable 5-3000 F6 Compression, F6 BNC, F6 Crimp
RG6 HDTV 1.02mm BC Conductor, 95% TC braiding shield, PVC Jacket (White or Black), Headend cable 5-3000 F6 Compression, F6 BNC, F6 Crimp

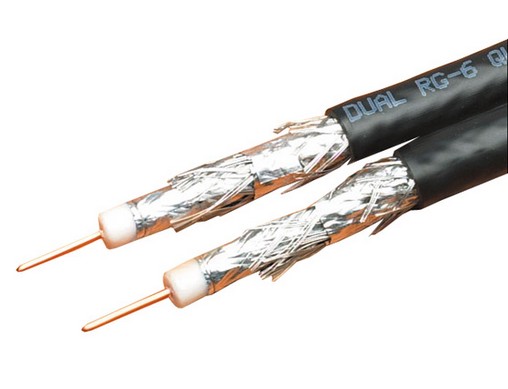

Dual RG6 2x ( 1.02mm CCS conductor , 60% braid, PVC Jacket , Standard shield ) White or Black 50-2150 F6 Compression, F6 BNC, F6 Crimp
RG6+Cat5e 1.02mm CCS conductor , 60% braid, PVC Jacket (White or Black) , Standard Shield, Plus 4pairs UTP Cat5e 50-2150 F6 Compression, F6 BNC, F6 Crimp，RJ45



Attenuation (＠20 ℃)

Frequency(MHz) Max Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6
