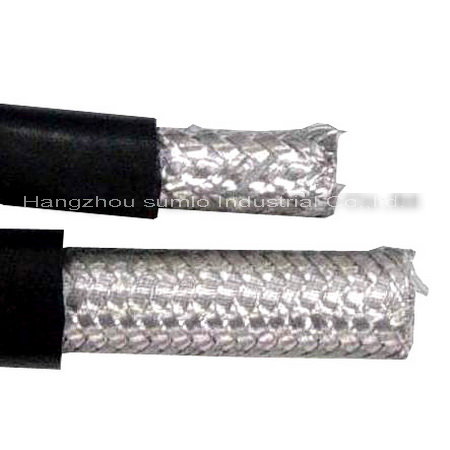

SMR SERIES RF COAXIAL CABLE

SMR Series cables provide excellent performance for high power HF needs or VHF/UHF applications .They are high performance broadband, flexible, low loss 50 Ohm coaxial communication cables designed for wireless application such as: Cellular,Mobile Antennas,wireless local loop,wireless internet,broadband wireless data. Compared to RG type braided cables, SMR cables offer far lower loss and better RF shielding.

Key Benefits

  • 50ohm RF coaxial cable
  • Excellent performance
  • High Quality
  • Low loss, low VSWR
  • Effectiveness shielding

Applications

  • VHF/UHF applications
  • Microwave applications
  • Commercial wireless systems
  • Military systems

Specifications:

Item
Descriptions
Approved Testing Band Mhz

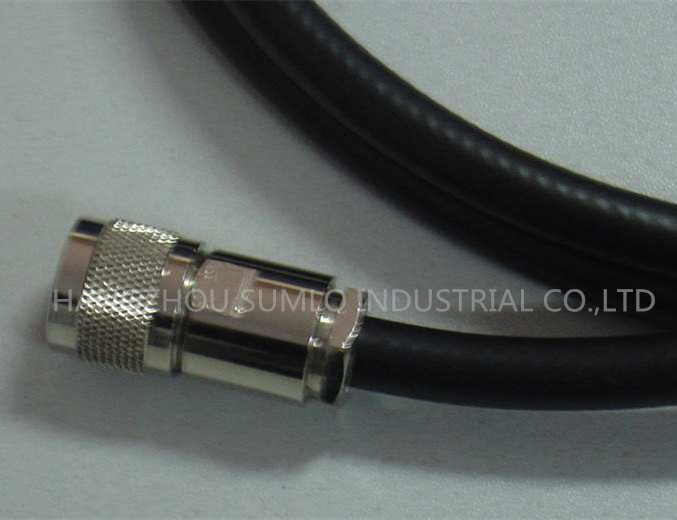

Related Connectors
SMR100A 0.46mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, BNC, SMA
SMR195 0.94mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, BNC, SMA
SMR200 1.12mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, BNC, SMA
SMR240 1.42mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, BNC, SMA
SMR300 1.78mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, BNC, SMA
SMR400 2.74mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 Type N , Din 7-16, TNC, BNC , SMA
SMR400-C 2.74mm BC conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-5000 Type N , Din 7-16, TNC, BNC , SMA
SMR500 3.61mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, SMA
SMR600 4.47mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 TNC Male , Type N Male, DIN 7-16
SMR600-C 4.47mm BC conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-5000 TNC Male , Type N Male, DIN 7-16
RG8 2.74mmCCAL conductor , 90% braid, PE Jacket (Black only) , Standard Shield 5-3000 Type N , Din 7-16, TNC, BNC , SMA



Attenuation (within 20 ℃)and Average Power

（Condition :entironment temperture 40℃,inner Conductor temperture 100℃）

Model 100A 195 200 240 300 400 500 600
Attenuation
(dB/100m) 		30MHz 12.9 6.5 5.8 4.4 3.5 2.2 1.8 1.4
50MHz 16.7 8.4 7.5 5.7 4.5 2.9 2.3 1.8
100MHz 23.8 12 10.8 8.2 6.5 4.3 3.4 2.8
150MHz 29.4 14.6 13.1 9.9 7.9 5.0 4.0 3.2
220MHz 35.8 17.7 15.9 12.0 9.6 6.1 4.9 3.9
450MHz 51.9 25.5 22.8 17.3 13.8 8.9 7.1 5.6
900MHz 74.9 36.5 32.6 24.8 19.9 12.8 10.3 8.2
1500MHz 98.7 47.7 42.4 32.4 26 16.8 13.6 10.9
1800MHz 109 52.5 46.6 35.6 28.7 18.6 15.0 12.1
2000MHz 115.5 55.4 49.3 37.7 30.3 19.6 15.9 12.8
2500MHz 130.6 62.4 55.4 42.4 34.2 22.2 18.0 14.5
3000MHz 143.8 68.9 61.3 47.1 38.2 25.0 20.4 16.6
