ERICSSON STANDARD 75 Ohm telecommunication cables, Used for the interconnection of each equipment or cables of the same characteristic impedance .
Key Benefits
|
Applications
|

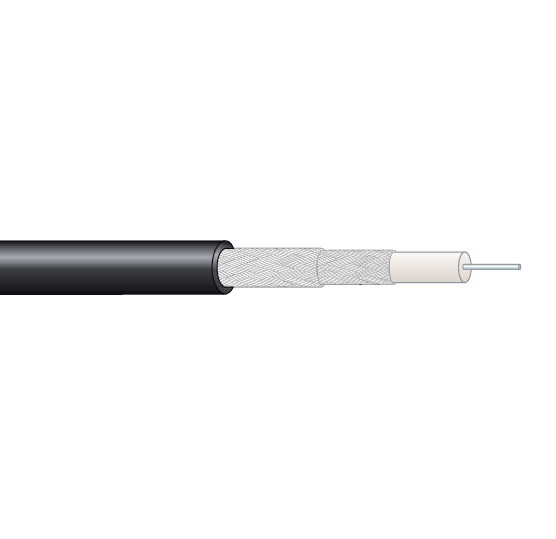

TZC 750 24 | 0.31mm BC conductor , Double Tinned copper braid. 3.55mm PVC (Black only), standard shield | 1-200 | ![]() |
BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP |
TZC 750 25 | 0.31mm BC conductor , Double Tinned copper braid. 3.55mm HFLS (Black only), standard shield | 1-200 | ![]() |
BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP |

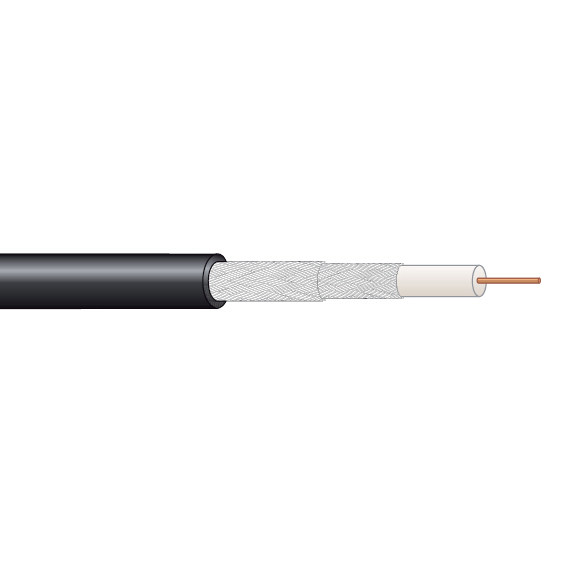

TZC 750 05 | 0.49mm TC conductor, Double Tinned copper braid. 5.60mm PVC (Black only) ,standard shield | 1-200 | ![]() |
BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP |
Frequency(MHz) | TZC 750 24 | TZC 750 25 | TZC 750 05 |
1.02 | 2.3 | 2.3 | 1.7 |
4.22 | 4.6 | 4.6 | 3 |
5 | |||
10 | |||
17.18 | 9.3 | 5.9 | |
20 | |||
30 | |||
34.37 | |||
50 | |||
70 | 19 | 19 | 12 |
100 | |||
200 | 32 | 32 | 18 |
