RG59

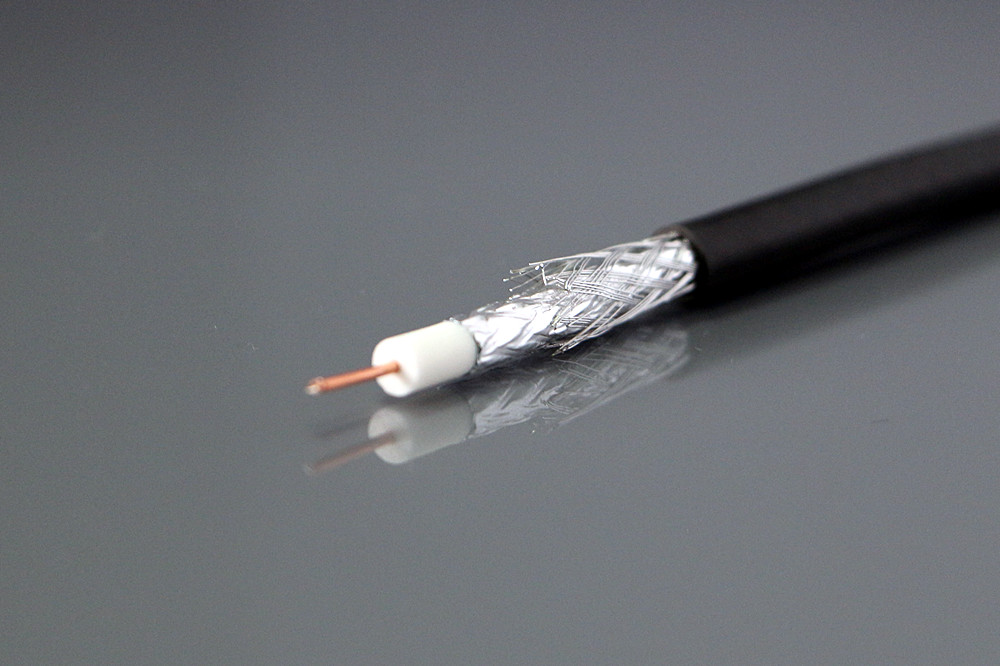

RG-59 is a specific type of coaxial cable, often used for low-power video and RF signal connections, the cable has a characteristic impedance of 75 ohms.

It is often used at baseband video frequencies, such as composite video. It may also be used for broadcast frequencies, but its high-frequency losses are too high to allow its use over long distances; in these applications, RG-6 or RG-11 is used instead. In cases where the transmission distance is too long for these media, such options as UTP (unshielded twisted pair) or fiber optic can be used. However, given the short lengths provided (usually 4–6 ft or 1.2–1.8 m), this is generally sufficient for its typical use.

Key Benefits

  • High performance
  • High Quality
  • Lower attenuations
  • Easy installations
  • Lower Price

Applications

  • RF signal transmission,
  • MATV, CATV, CCTV,
  • Digital video applications
  • Drop cable
  • Satellite systems

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
F5967BV 0.81mm CCS conductor , 67% braid, PVC Jacket (White or Black) , Standard Shield 50-2150 IECM-F59, IECF-FF, F59 Crimp, SpliceFF-FF
F5990BV 0.81mm CCS conductor , 90% braid, PE Jacket (White or Black) , Standard Shield 50-2150 IECM-F59, IECF-FF, F59 Crimp, SpliceFF-FF

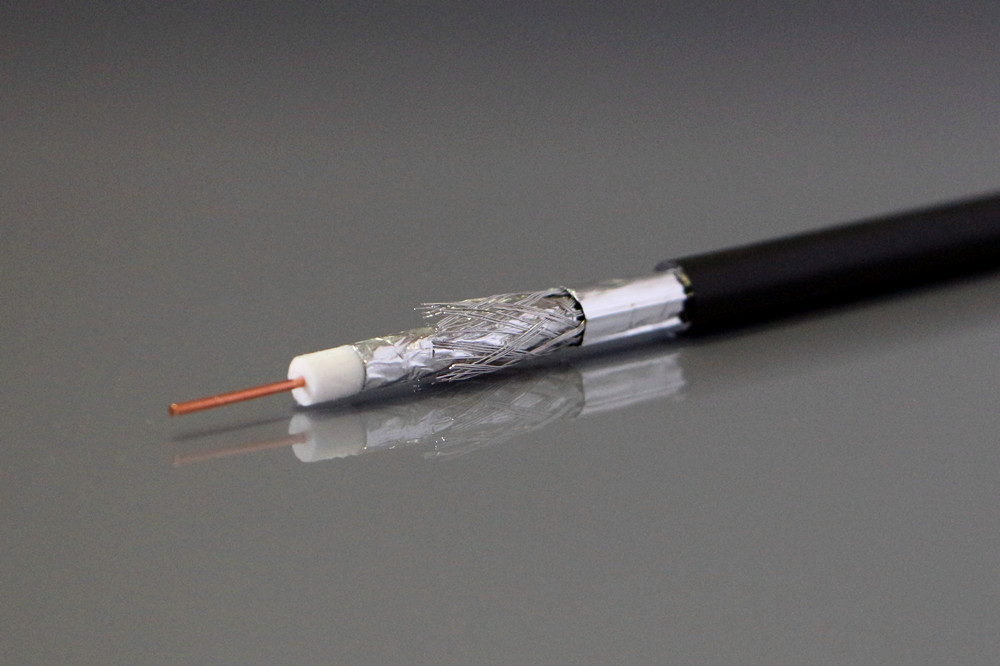

F59TSV 0.81mm CCS conductor , 67% braid, PE Jacket (White or Black) Tri Shield 50-2150 IECM-F59, IECF-FF, F59 Crimp
59F32BV CCS conductor ,30% braid, PVC Jacket (White or Black ) , Standard Shield 200-1000 IECM-F59, IECF-FF, F59 Crimp
59F48BV CCS conductor ,40% braid, PVC Jacket (White or Black), Standard Shield 200-1000 IECM-F59, IECF-FF, F59 Crimp
RG59CCTV 0.81mm BC conductor , 95% TC braid, PVC Jacket (White or Black) , Standard Shield 5-3000 IECM-F59, IECF-FF, F59 Crimp, SpliceFF-FF
RG59CCTV-CCAL 0.81mm BC conductor , 90% CCAL braid, PVC Jacket (White or Black ) , Standard Shield 5-3000 IECM-F59, IECF-FF, F59 Crimp, SpliceFF-FF
RG59CCTV+DC 0.81mm BC conductor , 90% CCAL braid, PVC Jacket (White or Black ) , Standard Shield , Plus 2/18AWG Power cords 5-3000 IECM-F59, IECF-FF, F59 Crimp, SpliceFF-FF
Mini RG59 CCTV 0.60mm BC conductor , 95% braid, 4.0mm PVC Jacket (White or Black) ,Standard Shield 5-3000 F59mini Crimp




Attenuation (＠20 ℃)

Frequency(MHz) Max Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.9 2.8
55 2.1 6.7
187 3.6 11.8
211 3.8 12.5
400 5.1 16.7
500 5.7 18.7
750 7.0 22.8
860 7.5 24.6
1000 8.0 26.3
1500 9.9 32.5
1800 10.9 35.6
2200 12.6 41.2
3000 13.8 45.2
