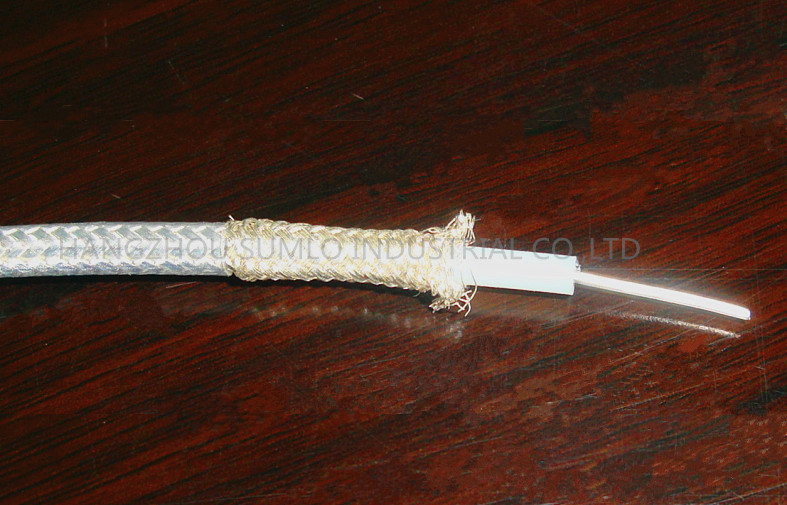

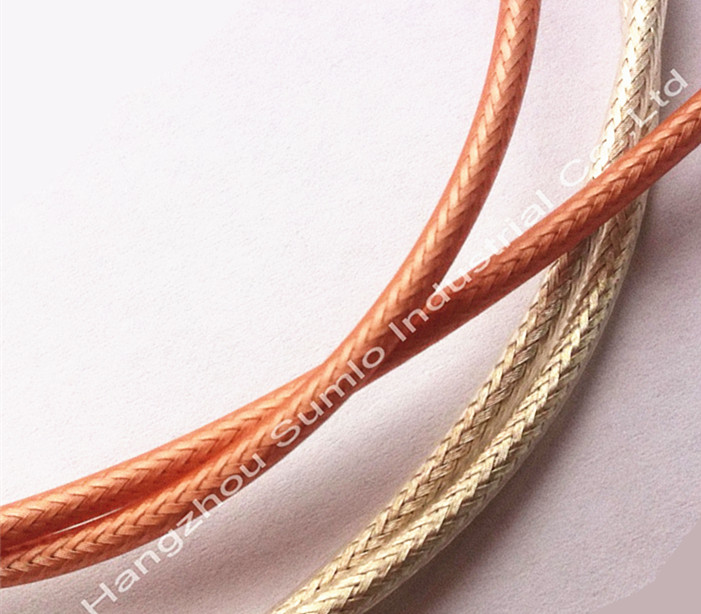

These cables are MIL Spec coaxial cables with PTFE insulation, Silver Plated copper as braid wire, and FEP or PTFE as jacket. They used in wireless communication, RF and microwave transmission, data transmission and instrumentation control. These cables based upon MIL-Spec designs and are often referred to by their RG type number. MIL-C-17 is the government specification document used to standardize coaxial cables, it has been in use since the 1940’s.
Key Benefits
|
Applications
|
| RG195 | 7/0.10mm SPCCS conductor, 90%SPC braid, 3.58mm FEP Jacket (Transparent) | 95+/-5 | 10-1000 |  |
BNC Male straight , TNC Female crimp |
| RG196 | 7/0.10mm SPCCS conductor, 95%SPC braid, 1.80mm FEP Jacket (Transparent ) | 50+/-2 | 10-3000 |  |
SMA Female , SMB with plug right angle |
| RG302 | 0.64mm SPCCS conductor, 90% SPC braid, 5.13mm FEP Jacket (Transparent) | 75+/-3 | 10-3000 |  |
BNC,TNC, SMA,Frkra,FME, MCX |
| RG303 | 0.94mm SPCCS conductor, 95% SPC braid, 4.32mm FEP Jacket (Transparent ) | 50+/-2 | 10-3000 |  |
BNC Male clamp , SMA Male right angle |
| RG304 | 1.50mm SPCCS conductor, Double 95% SPC braid, 7.11mm FEP Jacket (Transparent) | 50+/-2 | 10-8000 |  |
BNC Male straight , TNC , SMA |
| RG316 | 7/0.17mm SPCCS conductor, 95% SPC braid, 2.49mm FEP Jacket (Transparent) | 50+/-2 | 10-3000 |  |
SMA Male ,TNC Crimp,MCX,QMA |
| RG393 | 7/0.792mm SPC conductor, Double 95% SPC braid, 9.91mm FEP Jacket (Transparent) | 50+/-2 | 50-11000 |  |
DIN 7/16 Male crimp, N type Female ,TNC male Right Angle |
| RG400 | 19/0.203mm SPC conductor, Double 95% SPC braid, 4.95mm FEP Jacket (Transparent) | 50+/-2 | 50-12400 |  |
BNC Male clamp , SMA Male right angle,SMB |
Remark:
SPCCS : Silver plated copper clad steel
SPC: Silver plated copper
