Outer door splitter & taps


  • Suitable for 5~1000MHz system single-directional or bi-directional network transmission system.
  • High isolation degree, low power consumption and flat frequency characteristic.
  • Each path over-current or semi-current.
  • Excellent Waterproof performance. 5/8 standard interface.

    • Specifications:

    Model
    Descriptions
    Suitable Connectors
    1- WAY TAP AND 2-WAY SPLITTER Over-current 5/8”connector
    2- WAY TAP AND 3-WAY SPLITTER Over-current 5/8”connector
    2-WAY TAP Semi-current 5/8”connector
    4-WAY TAP Semi-current 5/8”connector
    8-WAY TAP Semi-current 5/8”connector

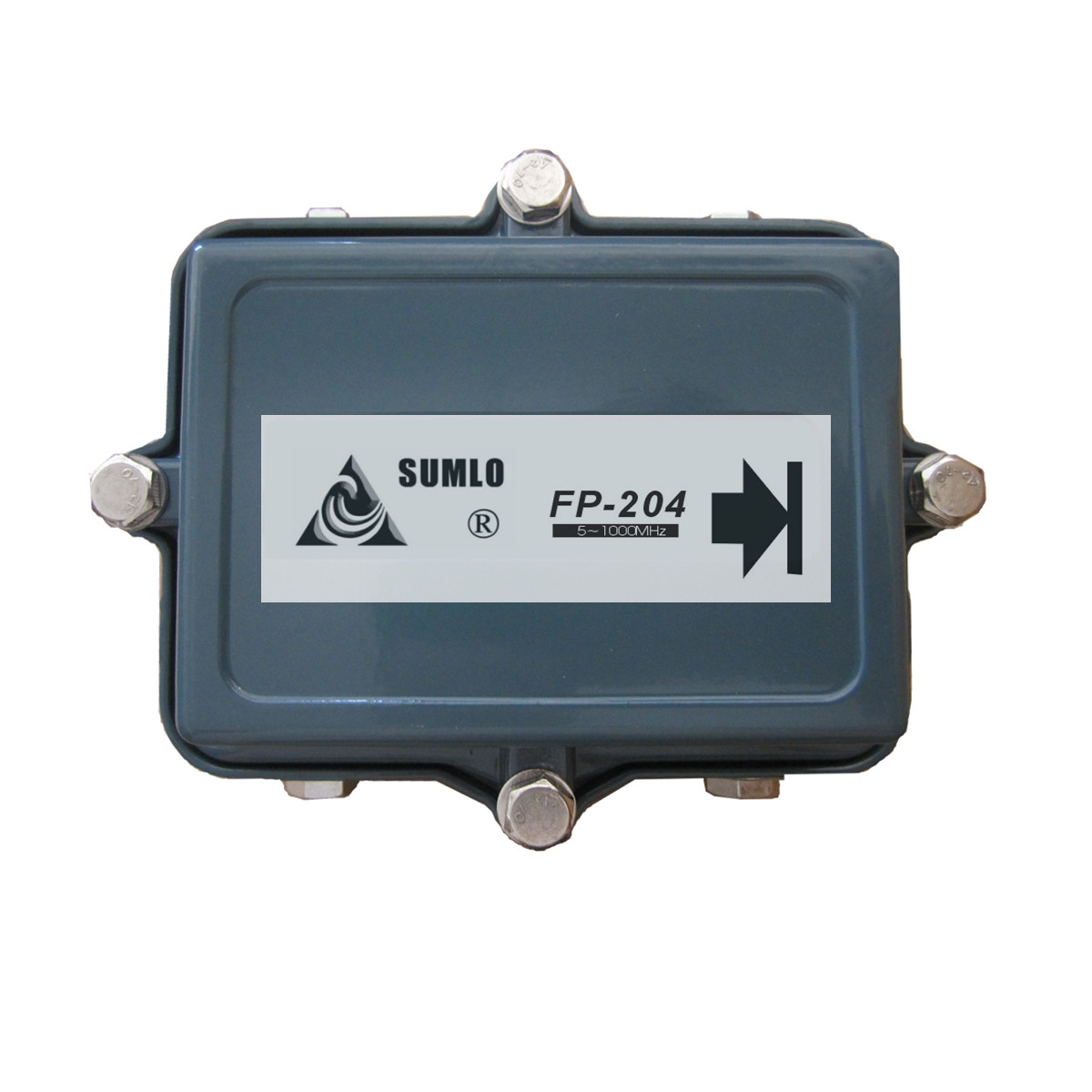

    2way & 3way Splitter
    ITEM UNIT PARAMETER
    WFP-204B WFP-306B
    Distribution Loss
    5~65MHZ dB ≤4.5 ≤7.5
    65~550MHZ dB ≤4.2 ≤6.8
    550~750MHZ dB ≤4.9 ≤7.2
    750~1000MHZ dB ≤5.5 ≤7.9
    Isolation
    5~65MHZ dB ≥20
    65~550MHZ dB ≥22
    550~750MHZ dB ≥22
    750~1000MHZ dB ≥22
    Return Loss
    5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16

    Shield Decay

    		dB ≥100
    Signal to Hum Ratio dB ≥66
    Port Carry Flow Ability A 6、10
    Voltage Pass V 60（50Hz）



    1way Tap
    ITEM UNIT PARAMETER
    Tap Loss

    Mark and Claim Value

    		dB 8 10 12 14 16 18 20

    Deviation Allowance

    		dB ±1.0
    Insertion Loss
    5~65MHZ dB ≤2.7 ≤2.5 ≤2.2 ≤1.9 ≤1.7 ≤1.6 ≤1.6
    65~550MHZ dB ≤2.5 ≤2.3 ≤2.0 ≤1.7 ≤1.5 ≤1.4 ≤1.4
    550~750MHZ dB ≤2.7 ≤2.5 ≤2.2 ≤2.1 ≤1.9 ≤1.8 ≤1.8
    750~1000MHZ dB ≤3.0 ≤2.7 ≤2.5 ≤2.2 ≤2.1 ≤2.0 ≤2.0
    Reverse Isolation
    5~65MHZ dB ≥18 ≥20 ≥22 ≥22 ≥24 ≥26 ≥26
    65~550MHZ dB ≥20 ≥22 ≥22 ≥22 ≥24 ≥26 ≥26
    550~750MHZ dB ≥20 ≥20 ≥20 ≥20 ≥22 ≥22 ≥22
    750~1000MHZ dB ≥20 ≥20 ≥22 ≥20 ≥22 ≥22 ≥22
    Return Loss
    5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Flatness in Band dB ±1.0

    Shield Decay

    		dB ≥100
    Signal to Hum Ratio dB ≥66
    Port Carry Flow Ability A 6、10
    Voltage Pass V 60（50Hz）



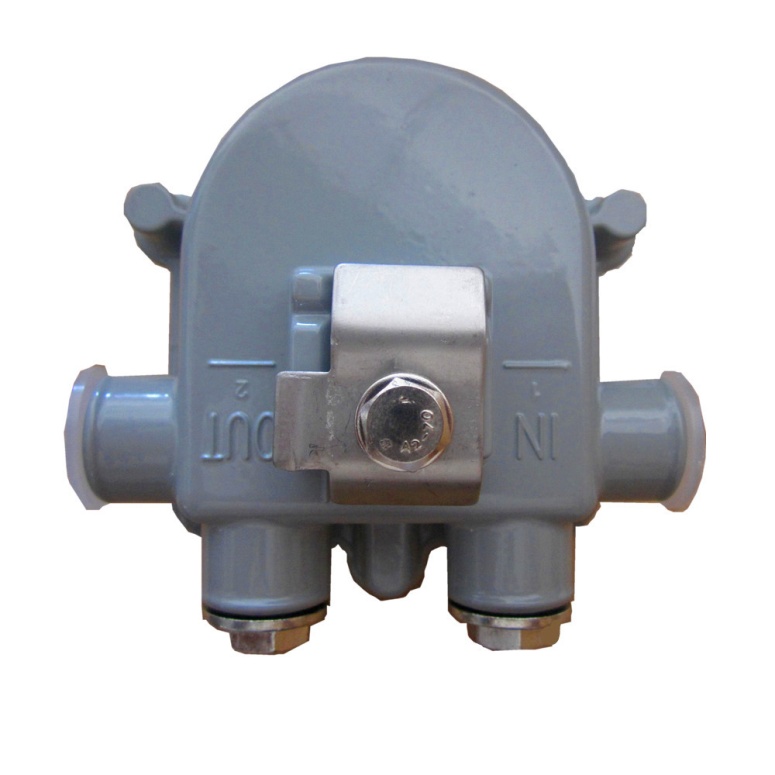

    2way Tap
    ITEM UNIT PARAMETER
    Tap Loss

    Mark and Claim Value

    		dB 8 10 12 14 16 18 20

    Deviation Allowance

    		dB ±1.0
    Insertion Loss
    5~65MHZ dB ≤4.0 ≤3.3 ≤2.5 ≤2.3 ≤2.0 ≤2.0 ≤1.7
    65~550MHZ dB ≤4.0 ≤3.3 ≤2.5 ≤2.3 ≤2.0 ≤2.0 ≤1.5
    550~750MHZ dB ≤4.5 ≤3.7 ≤2.9 ≤2.7 ≤2.5 ≤2.5 ≤2.0
    750~1000MHZ dB ≤4.5 ≤3.7 ≤2.9 ≤2.7 ≤2.5 ≤2.5 ≤2.0
    Reverse Isolation
    5~65MHZ dB ≥22 ≥22 ≥22 ≥26 ≥26 ≥26 ≥30
    65~550MHZ dB ≥22 ≥22 ≥22 ≥26 ≥26 ≥26 ≥30
    550~750MHZ dB ≥18 ≥20 ≥20 ≥22 ≥22 ≥26 ≥26
    750~1000MHZ dB ≥18 ≥20 ≥22 ≥22 ≥22 ≥24 ≥24
    Isolation
    5~65MHZ dB ≥22
    65~550MHZ dB ≥30
    550~750MHZ dB ≥22
    750~1000MHZ dB ≥20
    Return Loss
    5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Flatness in Band dB ±1.0

    Shield Decay

    		dB ≥100
    Signal to Hum Ratio dB ≥66
    Port Carry Flow Ability A 6、10
    Voltage Pass V 60（50Hz）

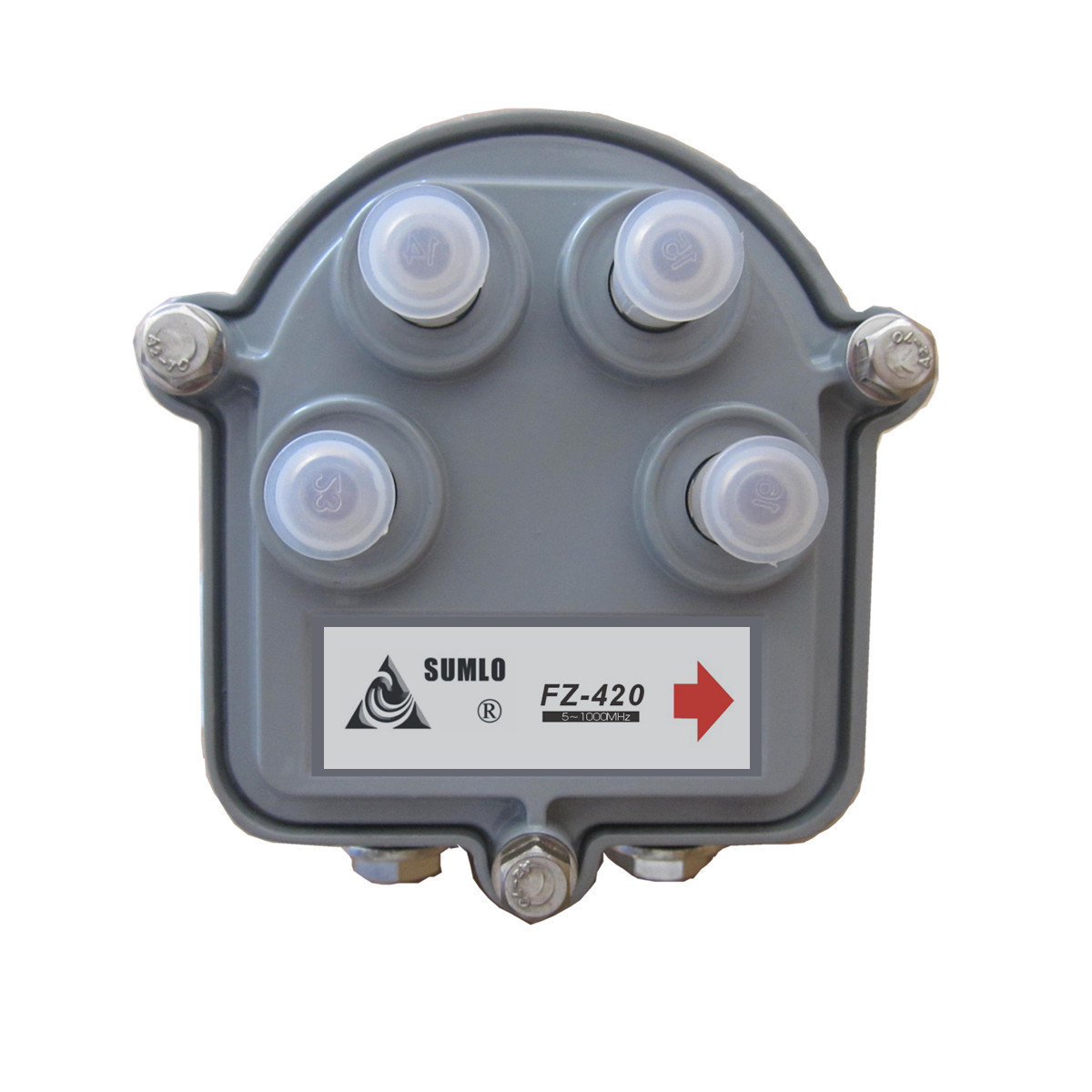

    4way Tap
    ITEM UNIT PARAMETER
    Tap Loss

    Mark and Claim Value

    		dB 12 14 16 18 20 22 24

    Deviation Allowance

    		dB ±1.0
    Insertion Loss
    5~65MHZ dB ≤4.0 ≤3.8 ≤2.5 ≤2.2 ≤2.0 ≤1.8 ≤1.5
    65~550MHZ dB ≤4.0 ≤3.8 ≤2.5 ≤2.2 ≤2.0 ≤1.8 ≤1.0
    550~750MHZ dB ≤4.3 ≤4.0 ≤2.8 ≤2.5 ≤2.5 ≤2.3 ≤1.8
    750~1000MHZ dB ≤4.5 ≤4.2 ≤3.0 ≤2.8 ≤2.8 ≤2.5 ≤2.0
    Reverse Isolation
    5~65MHZ dB ≥22 ≥22 ≥30 ≥30 ≥30 ≥30 ≥34
    65~550MHZ dB ≥22 ≥24 ≥30 ≥30 ≥30 ≥32 ≥34
    550~750MHZ dB ≥22 ≥24 ≥26 ≥28 ≥30 ≥32 ≥34
    750~1000MHZ dB ≥20 ≥22 ≥24 ≥24 ≥26 ≥26 ≥26
    Isolation
    5~65MHZ dB ≥20 ≥22
    65~550MHZ dB ≥25 ≥30
    550~750MHZ dB ≥22 ≥25
    750~1000MHZ dB ≥22 ≥22
    Return Loss
    5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Flatness in Band dB ±1.0

    Shield Decay

    		dB ≥100
    Signal to Hum Ratio dB ≥66
    Port Carry Flow Ability A 6、10
    Voltage Pass V 60（50Hz）

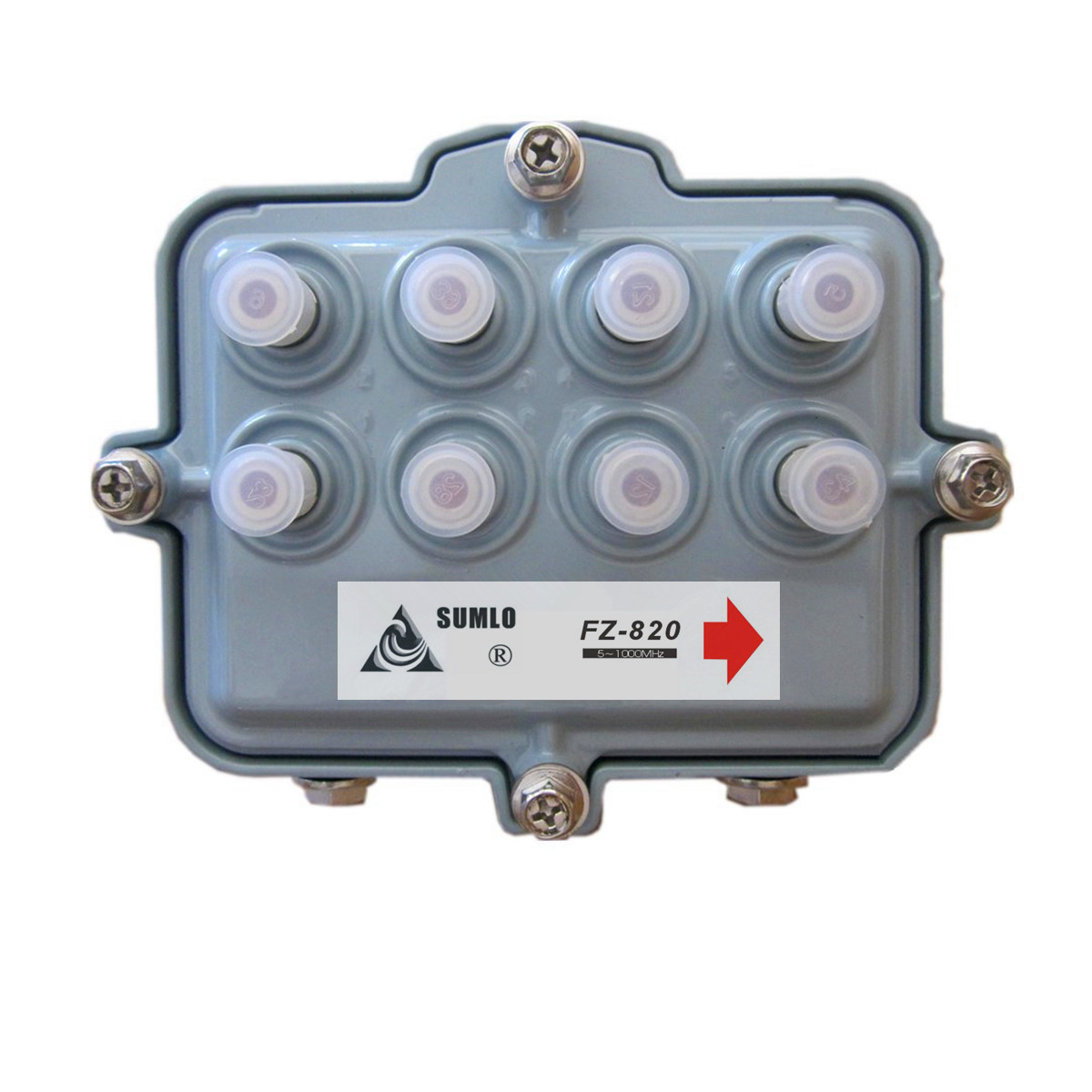

    8way Tap
    ITEM UNIT PARAMETER
    Tap Loss

    Mark and Claim Value

    		dB 14 16 18

    Deviation Allowance

    		dB ±1.0
    Insertion Loss
    5~65MHZ dB ≤3.5 ≤3.5 ≤3.2
    65~550MHZ dB ≤3.7 ≤3.8 ≤3.5
    550~750MHZ dB ≤3.9 ≤4.3 ≤3.7
    750~1000MHZ dB ≤4.2 ≤4.5 ≤4.0
    Reverse Isolation
    5~65MHZ dB ≥22 ≥30 ≥34
    65~550MHZ dB ≥22 ≥30 ≥34
    550~750MHZ dB ≥22 ≥30 ≥34
    750~1000MHZ dB ≥20 ≥26 ≥26
    Isolation
    5~65MHZ dB ≥20
    65~550MHZ dB ≥25
    550~750MHZ dB ≥22
    750~1000MHZ dB ≥22
    Return Loss
    5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Flatness in Band dB ±1.0

    Shield Decay

    		dB ≥100
    Signal to Hum Ratio dB ≥66
    Port Carry Flow Ability A 6、10
    Voltage Pass V 60（50Hz）
