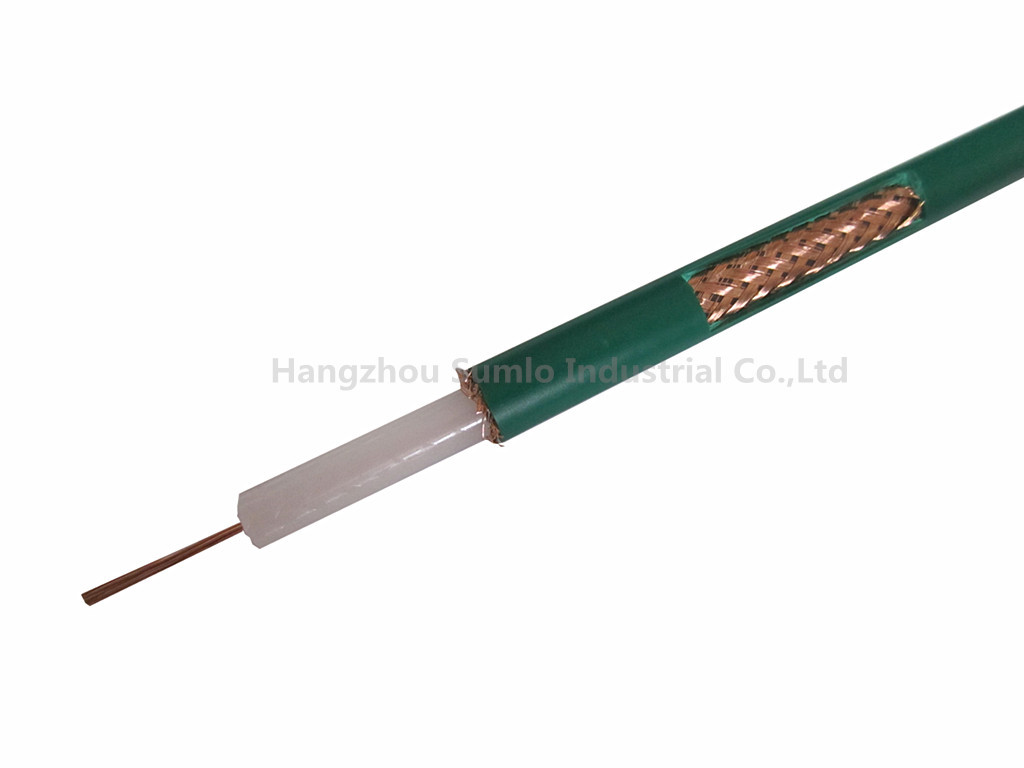

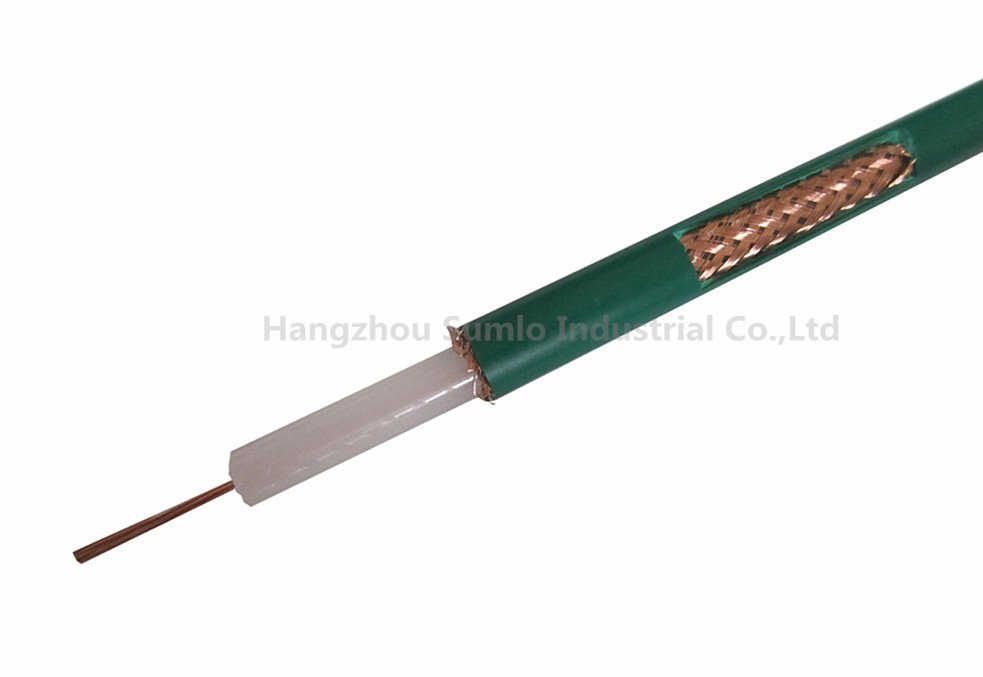

KX6,KX6A

These cables are France Standard, they used as a distribution cable for indoor CATV (Community Antenna Television),MATV (Master Antenna Television),Digital Video and as a connection cable for satellite systems where lower attenuation required.


Key Benefits

  • High performance
  • Economical design
  • Lower attenuations
  • Easy installations
  • Lower Price

Applications

  • RF signal transmission,
  • MATV, CATV, CCTV,
  • Digital video applications
  • Drop in broadcast.
  • Satellite systems

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
KX6 7/0.20mm BC conductor, 85% braid, PVC Jacket (Green only) , Standard Shield 5-3000 BNC Crimp ，SMA JACK
KX6A 7/0.20mm CCAL conductor, 85% braid, PVC Jacket (Green only) , Standard Shield 50-2150 BNC Crimp ，SMA JACK




Attenuation (＠20 ℃)

Frequency(MHz) Max Attenuation (dB/100m)
47 4.80
100 6.50
230 9.40
300 10.70
400 12.30
800 18.00
860 18.40
1000 20.00
1350 23.50
1750 26.80
2150 30.00
