Optical fiber cable is a cable containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building
|
|
|
|
|
|

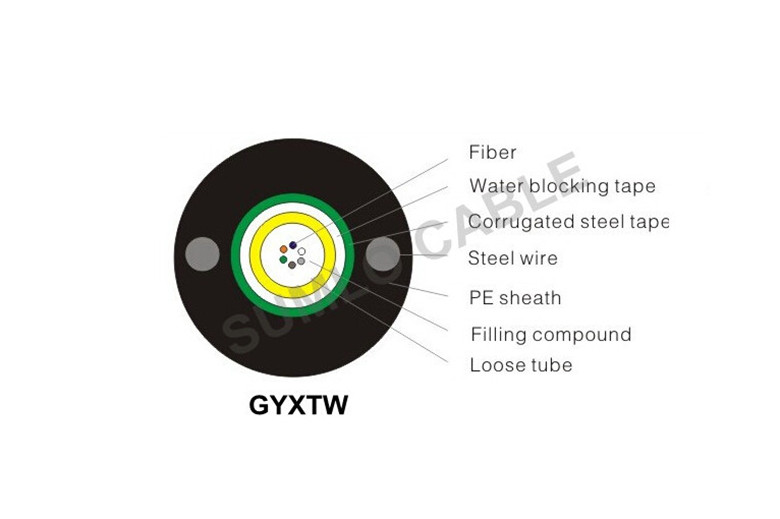

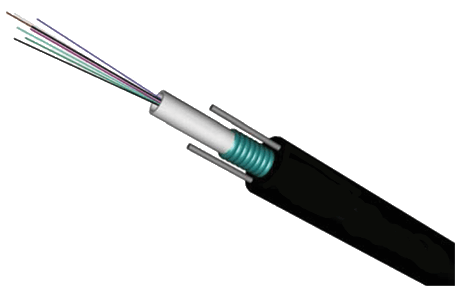

| GYXTW | Duct / Direct Buried / Aerial outdoor | Central loose tube type, specially designed armoured steel tape protected. Especially two parallel steel wires ensure tensile strength communication-strong cable . |  |

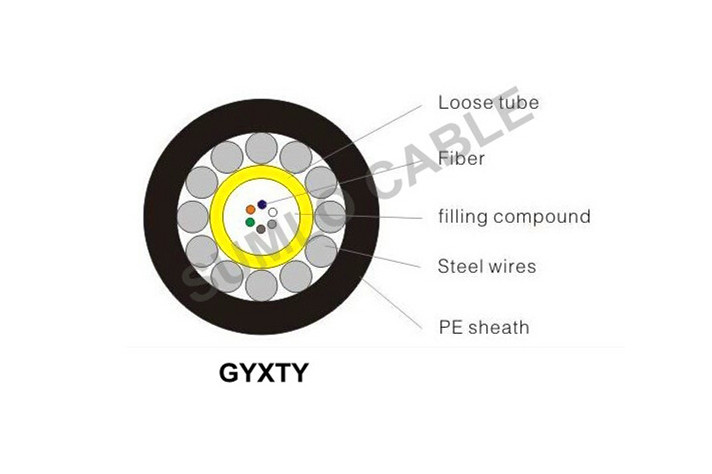

| GYXTY | outdoor | Central loose tube type, compactly designed packets around 12 (or 10 or 8) round wire strands or plastic shield , excellent crush resistance, high mechanical strength. |  |
|
Item |
Laying mode |
No. of fiber |
Outer Dia. (mm) |
Tensile Strength Resistance (short term) |
Crush Resistance (N/100mm) |
Permissible Bending Radius |
Weight |
|
GYXTW |
Duct / Direct Buried / Aerial outdoor |
2-48 |
|
≥1500 |
≥1000 |
10times x Dia. |
|
|
GYXTY |
Aerial outdoor |
2-24 |
9.5-10.2 |
≥1500 |
≥1000 |
10times x Dia. |
90-100 |
* Operating Temperature Range: -40℃ ~ +60℃
* Fiber coil is from CORNING . Single mode G652,G657 ; Multi mode OM1,OM2( G651)
* Fiber color and Binder color code: according to EIA/TIA 598B
|
Model of Optical fiber |
|
G.652 |
G.657 |
OM2(50/125μm) |
OM1(62.5/125μm) |
|
Attenuation (+20°C)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.35 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.21dB/km |
|
|
|
|
@1625nm |
|
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz@km |
≥200 MHz@km |
|
@1300nm |
|
|
≥1000 MHz@km |
≥600 MHz@km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1260nm |
|
|
|
