Flex5, Flex3

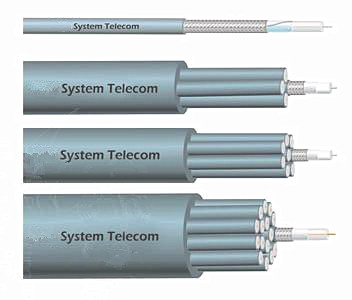

SPANISH TELEFONICA STANDARD 75 Ohm telecommunication cables, Used for the interconnection of each equipment or cables of the same characteristic impedance .The cables are available in single or multi-core versions, to suit a range of applications and requirements.

Key Benefits

Excellent performance
Special design
Single/ Multi-core versions
Double braid
Easy for installation

Applications

Telecom systems
Digital telephone exchange
Interconnection of telecommunication equipment

Specifications:

Item	Descriptions	Approved Testing Band Mhz	Related Connectors
Flex 3-single core	0.40mm BC conductor , 90% Tinned copper Braid , Tinned copper drain , 3.50mm PVC Jacket (Grey only).	1-200	BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP
Flex3 -8 cores	0.40mm BC conductor , 90% Tinned copper Braid , Tinned copper drain , 3.50mm PVC Jacket , 12.70mm overall PVC Jacket (Grey only)	1-200	BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP
Flex3 -16 cores	0.40mm BC conductor , 90% Tinned copper Braid , Tinned copper drain , 3.50mm PVC Jacket , 18.70mm overall PVC Jacket (Grey only)	1-200	BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP
Flex 5-single core	7x0.20mm BC conductor , 90% TC Braid +80% TC Braid , 4.70mm PVC Jacket (Grey only)	1-100	SMZ, 1.6/5.6 PLUG, 1.6/5.6 CRIMP MALE
Flex 5-8 cores	7x0.20mm BC conductor , 90% TC Braid +80% TC Braid , 4.70mm PVC Jacket, 17.30mm overall PVC Jacket (Grey only)	1-100	SMZ, 1.6/5.6 PLUG, 1.6/5.6 CRIMP MALE
Flex 5-16 cores	7x0.20mm BC conductor , 90% TC Braid +80% TC Braid , 4.70mm PVC Jacket, 25.10mm overall PVC Jacket (Grey only).	1-100	SMZ, 1.6/5.6 PLUG, 1.6/5.6 CRIMP MALE
