F15

In a cable TV system, the trunk line cable that leads from the headend to a distribution point. Or the cable running between a central office and a distribution point.  A distribution cable then leads to the individual subscribers.

Key Benefits

  • High performance
  • Seamless Aluminum tube
  • Lower attenuations
  • Easy installations
  • Lower Price

Applications

  • RF signal transmission,
  • MATV, CATV, CCTV,
  • Digital video applications
  • trunk line in broadcast.

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors

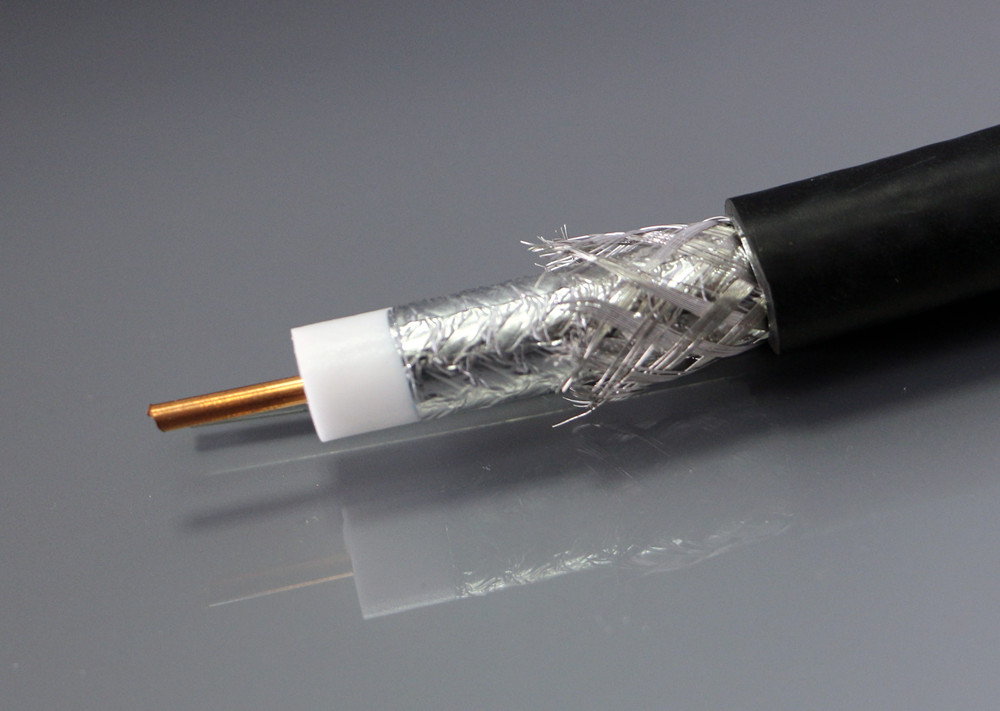

F1560BV 2.77mm CCAL Conductor , 60% Braid , 14.99mm PVC Jacket ( Black only ), Standard Shield 50-2150 Trunk KS-KS, RG15 Feed Thru ,RG15 SP

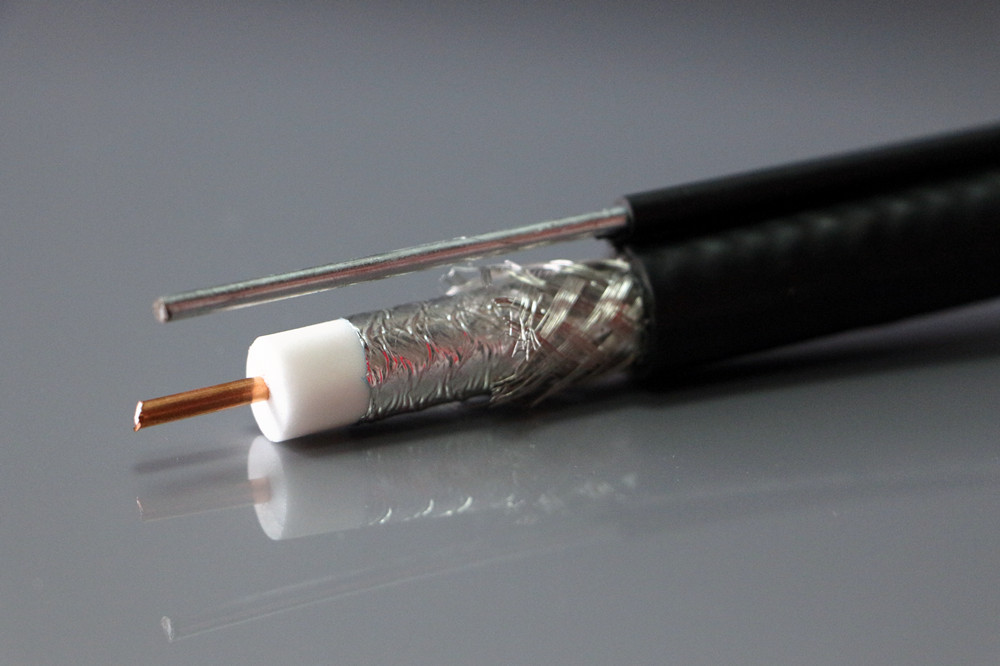

F1560BVM 2.77mm CCAL Conductor , 60% Braid , 14.99mm PVC Jacket ( Black only ), Standard Shield, Messengered 50-2150 Trunk KS-KS, RG15 Feed Thru ,RG15 SP

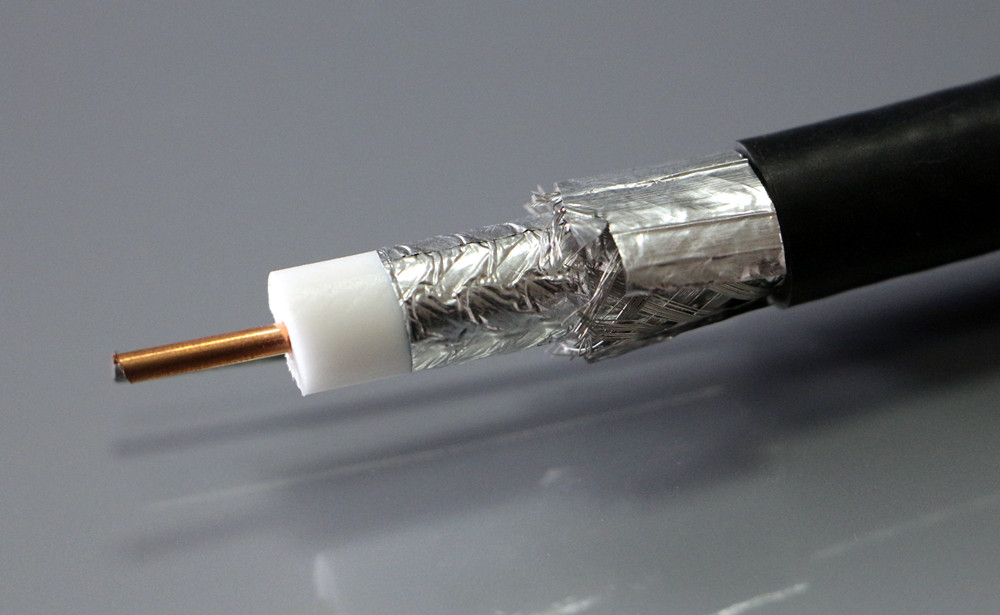

F50TSV 2.77mm CCAL Conductor , 60% Braid , 14.99mm PVC Jacket ( Black only ), Tri Shield 50-2150 RG15 Feed Thru , RG15 Splice ,RG15 Pin

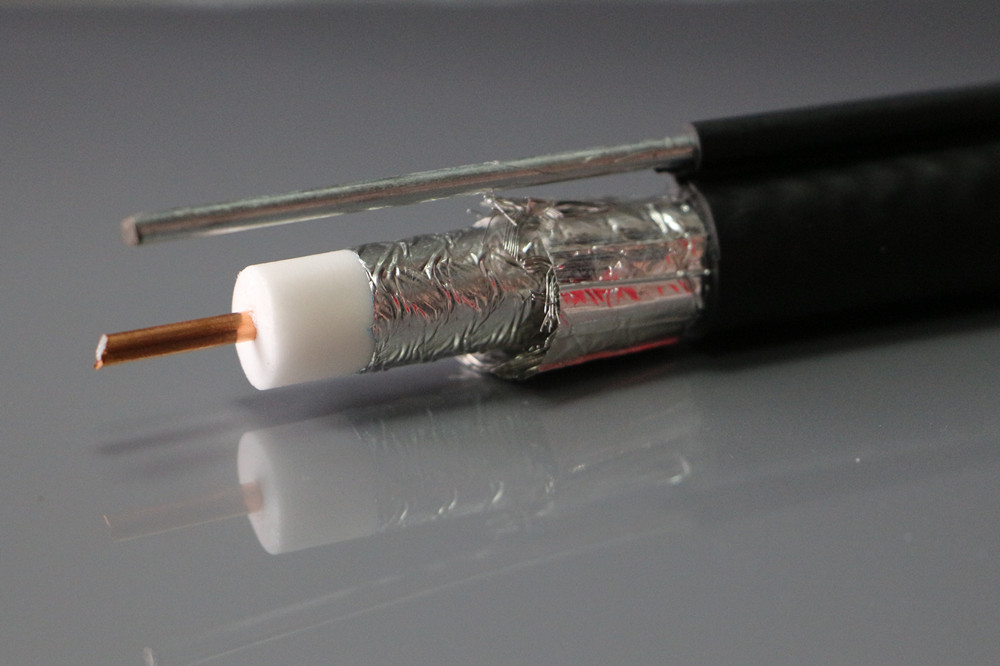

F1560BVMT F50TSVM 2.77mm CCAL Conductor , 60% Braid , 14.99mm PVC Jacket ( Black only ), Tri Shield, Messengered 50-2150 RG15 Feed Thru , RG15 Splice ,RG15 Pin




Attenuation (＠20 ℃)

Frequency(MHz) Max Attenuation (dB/100m)
50 1.69
100 2.42
200 3.48
300 4.32
400 5.04
450 5.37
500 5.69
550 5.99
600 6.28
650 6.56
750 7.10
850 7.61
1000 8.34
