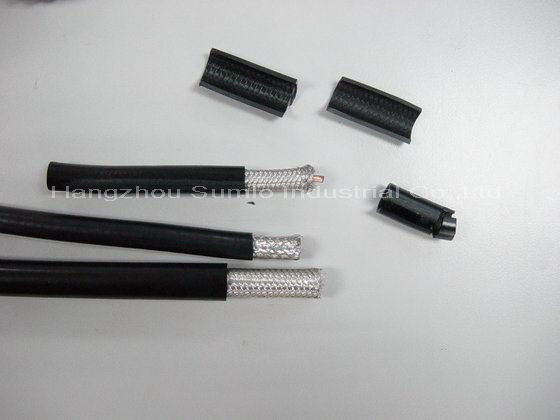

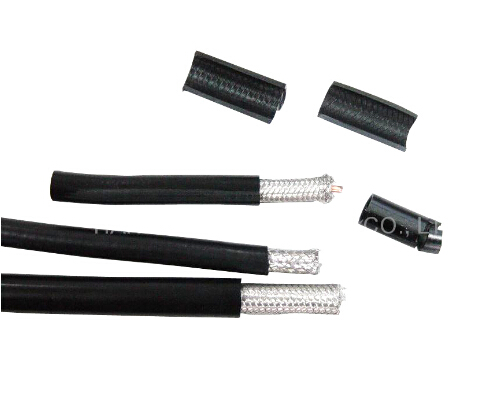

D-FB series RF COAXIAL CABLE

Known as the D-FB coaxial cable range, it consists of 4D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB and 12D-FB,all with 50 ohm characteristic impedance  The high velocity gas injected foam polyethylene dielectric provides the Lowest dielectric loss of any practical dielectric. .Excellent performance for Wireless communication, such as Antenna feeder of terrestrial mobile communication, wireless communication, terrestrial paging system, base station, equipments room, Connecting lines of base station.


Key Benefits

  • Ideal choice
  • Excellent performance
  • High Quality
  • Lowest Loss
  • Effectiveness shielding

Applications

  • Wireless communication
  • Antenna feeder of mobile communication
  • Terrestrial paging system
  • Base station
  • Equipments Room

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
5D-FB 1.80mm BC conductor , 90% TC braid, PVC Jacket (Black only) , Standard Shield 5-5000 N Male /Female ， TNC straight
5D-FB-CCAL 1.80mm CCAL conductor , 90% CCAL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female ， TNC streight
5D-FB-EC 1.80mm CCAL conductor , 90% AL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female ， TNC straight
7D-FB 2.60mm BC conductor , 90% TC braid, PVC Jacket (Black only) , Standard Shield 5-5000 N Male /Female ， TNC straight， Din Male
7D-FB-CCAL 2.60mm CCAL conductor , 90% CCAL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female, TNC straight， Din Male
7D-FB-EC 2.60mm CCAL conductor , 90% AL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female, TNC straight， Din Male
8D-FB 2.80mm BC conductor , 90% TC braid, PVC Jacket (Black only) , Standard Shield 5-5000 N Male /Female ， TNC Right Angle， Din Male,
8D-FB-CCAL 2.80mm CCAL conductor , 90% CCAL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female ， TNC Right Angle， Din Male,
8D-FB-EC 2.80mm CCAL conductor , 90% AL braid, PVC Jacket (Black only) , Standard Shield 5-3000 N Male /Female, TNC straight， Din Male
10D-FB 3.50mm BC conductor , 90% TC braid, PVC Jacket (Black only) , Standard Shield 5-5000 Din Male , N Type , TNC Straight / Right Angle
12D-FB 4.40mm BC conductor , 90% TC braid, PVC Jacket (Black only) , Standard Shield 5-5000 Din Male , N Type , TNC Straight / Right Angle



Electrical Characteristics

Model 12-FB 10D-FB 8D-FB 7D-FB 5D-FB RG8
Attenuation
(20℃)
(dB/100m) 		100MHz 2.60 3.20 4.30 4.40 6.30 4.40
150MHz 3.40 4.10 4.90 5.30 7.60 5.24
280MHz 4.70 5.60 7.00 7.30 10.90 7016
350MHz 5.30 6.30 8.10 8.30 12.10 8.03
400MHz 5.80 6.90 8.80 9.10 13.00 8.62
800MHz 8.50 10.20 13.10 13.00 19.00 12.47
900MHz 9.20 11.10 14.00 14.30 20.40 13.44
1200MHz 10.90 13.40 16.70 17.00 24.20 15.60
1500MHz 12.30 15.30 19.20 19.70 27.50 17.63
1900MHz 14.30 17.70 22.20 22.90 31.80 19.40
2000MHz 14.70 18.20 22.60 23.40 32.90 21.00
2200MHz 15.0 18.90 23.90 24.30 33.60 21.80
2500MHz 16.70 20.60 25.80 25.30 35.70 22.80
3000MHz 22.50 22.50 28.40 29.40 40.90 25.70
