The cable are according to British Standard which used as a distribution cable for indoor CATV (Community Antenna Television),MATV (Master Antenna Television),Digital Video and as a connection cable for satellite systems where lower attenuation required.
Key Benefits
|
Applications
|

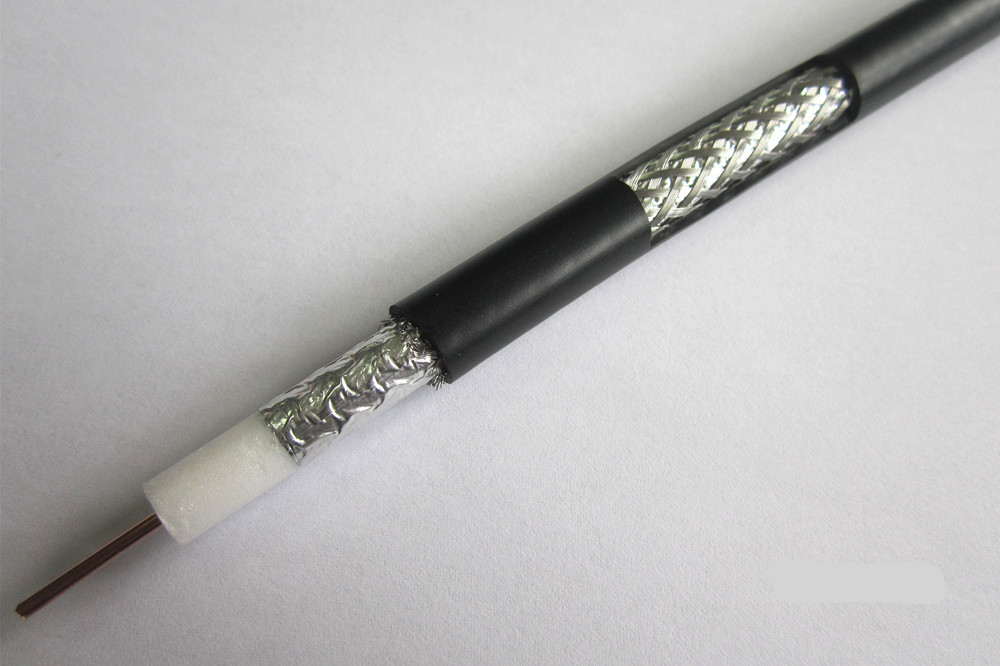

| CT165 | 1.63mm BC conductor ,55% braid, PVC Jacket (White or Blank ) , Standard Shield | 5-2150 |  |
F11 Compression, F11 Feed Thru，F11 Crimp，5/8 |
CT165:
Attenuation (＠20 ℃)
| Frequency(MHz) | Max Attenuation (dB/100m) |
| 5 | 1.0 |
| 50 | 3.0 |
| 100 | 4.0 |
| 200 | 6.0 |
| 460 | 9.0 |
| 860 | 12.5 |
| 1000 | 13.5 |
| 1750 | 19.0 |
| 2150 | 22.0 |
