5Mhz---1000Mhz CATV Taps indoor

  • High-quality passive transmission devices for 5~1000MHz bi-directional transmission system.
  • All ports F-female connector,75 ohm.
  • Insert loss lower, branch deviation smaller, distribution loss lower, port isolation degrees higher.
  • Adopt resistance and capacitance mount component and zinc-alloy organic whole. Shell surface plating Sn-Ce and nether cover using Sn, makes waterproof performance very good.

    • Specifications:

    Model
    Descriptions
    Suitable Connectors
    1-WAY TAP 75ohm F- Female
    2-WAY TAP 75ohm F- Female
    3-WAY TAP 75ohm F- Female
    4-WAY TAP 75ohm F- Female
    5-WAY TAP 75ohm F- Female
    6-WAY TAP 75ohm F- Female
    8-WAY TAP 75ohm F- Female



    1-WAY TAP
    Item Unit Parameter

    Distribution Loss

    		Mark and Claim Value dB 8 10 12 14 16 18 20
    Deviation Allowance dB ±1.0

    Insertion Loss

    		5~65MHZ dB ≤2.5 ≤2.2 ≤2.0 ≤1.8 ≤1.7 ≤1.5 ≤1.2
    65~550MHZ dB ≤2.0 ≤1.8 ≤1.5 ≤1.3 ≤1.2 ≤1.0 ≤0.7
    550~750MHZ dB ≤2.2 ≤2.0 ≤1.8 ≤1.6 ≤1.5 ≤1.5 ≤1.5
    750~1000MHZ dB ≤2.5 ≤2.2 ≤2.0 ≤2.0 ≤1.8 ≤1.8 ≤1.8

    Reverse Isolation

    		5~65MHZ dB ≥20 ≥22 ≥22 ≥24 ≥26 ≥28 ≥30
    65~550MHZ dB ≥22 ≥22 ≥22 ≥24 ≥26 ≥28 ≥30
    550~750MHZ dB ≥22 ≥22 ≥22 ≥24 ≥26 ≥28 ≥30
    750~1000MHZ dB ≥20 ≥20 ≥22 ≥22 ≥24 ≥24 ≥26

    Return Loss

    		5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Distribution Loss dB ≥100



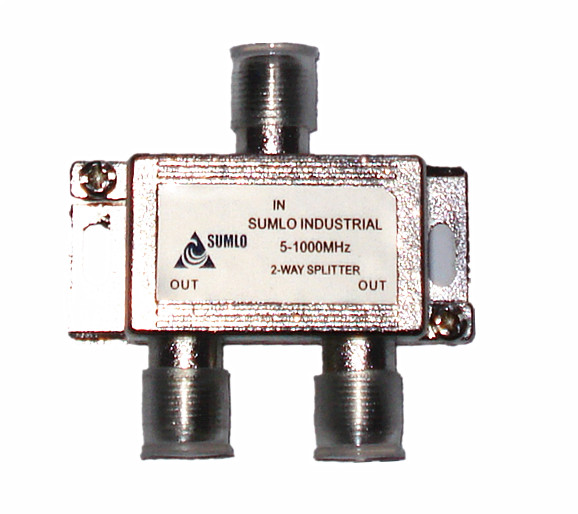

    2-WAY TAP
    Item Unit Parameter

    Distribution Loss

    		Mark and Claim Value dB 8 10 12 14 16 18 20 22
    Deviation Allowance dB ±1.0

    Insertion Loss

    		5~65MHZ dB ≤4.0 ≤3.3 ≤2.5 ≤2.3 ≤2.0 ≤2.0 ≤1.7 ≤1.7
    65~550MHZ dB ≤4.0 ≤3.3 ≤2.5 ≤2.3 ≤2.0 ≤2.0 ≤1.5 ≤1.5
    550~750MHZ dB ≤4.5 ≤3.7 ≤2.9 ≤2.7 ≤2.5 ≤2.5 ≤2.0 ≤2.0
    750~1000MHZ dB ≤4.5 ≤3.7 ≤2.9 ≤2.7 ≤2.5 ≤2.5 ≤2.0 ≤2.0

    Reverse Isolation

    		5~65MHZ dB ≥20 ≥22 ≥22 ≥26 ≥26 ≥30 ≥30 ≥30
    65~550MHZ dB ≥20 ≥22 ≥22 ≥26 ≥26 ≥30 ≥30 ≥30
    550~750MHZ dB ≥20 ≥20 ≥20 ≥22 ≥26 ≥28 ≥28 ≥28
    750~1000MHZ dB ≥18 ≥20 ≥20 ≥22 ≥24 ≥24 ≥24 ≥24

    Isolation

    		5~65MHZ dB ≥22
    65~550MHZ dB ≥30
    550~750MHZ dB ≥25
    750~1000MHZ dB ≥22

    Return Loss

    		5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Distribution Loss dB ≥100

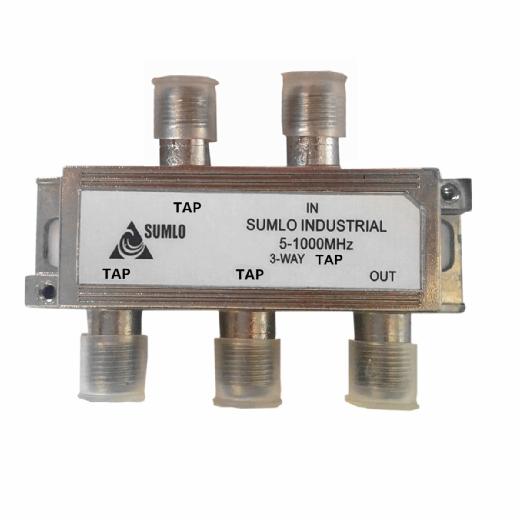

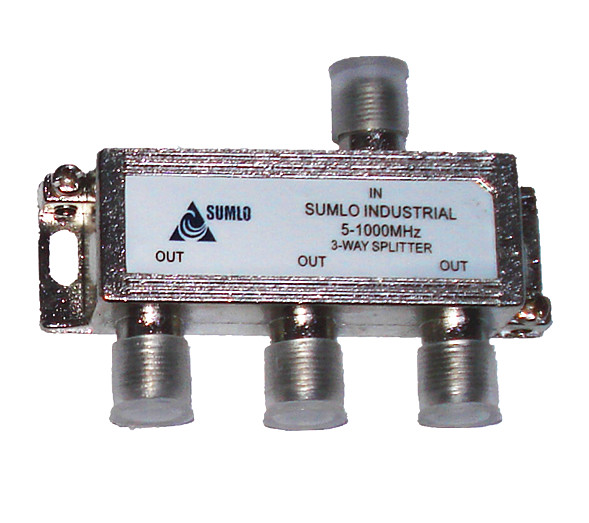

    3-WAY TAP
    Item Unit Parameter

    Distribution Loss

    		Mark and Claim Value dB 10 12 14 16 18 20 22
    Deviation Allowance dB ±1.0

    Insertion Loss

    		5~65MHZ dB ≤3.5 ≤3.2 ≤2.5 ≤1.8 ≤1.5 ≤1.2 ≤1.0
    65~550MHZ dB ≤3.8 ≤3.5 ≤2.7 ≤2.0 ≤1.8 ≤1.5 ≤1.2
    550~750MHZ dB ≤3.8 ≤3.5 ≤2.7 ≤2.0 ≤1.8 ≤1.5 ≤1.2
    750~1000MHZ dB ≤4.2 ≤3.8 ≤3.0 ≤2.5 ≤2.0 ≤1.8 ≤1.5

    Reverse Isolation

    		5~65MHZ dB ≥23 ≥25 ≥27 ≥29 ≥30 ≥30 ≥30
    65~550MHZ dB ≥ 23 ≥23 ≥25 ≥27 ≥28 ≥28 ≥28
    550~750MHZ dB ≥ 23 ≥23 ≥25 ≥27 ≥28 ≥28 ≥28
    750~1000MHZ dB ≥21 ≥21 ≥23 ≥25 ≥25 ≥25 ≥25

    Isolation

    		5~65MHZ dB ≥22
    65~550MHZ dB ≥28
    550~750MHZ dB ≥25
    750~1000MHZ dB ≥22

    Return Loss

    		5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Distribution Loss dB ≥100



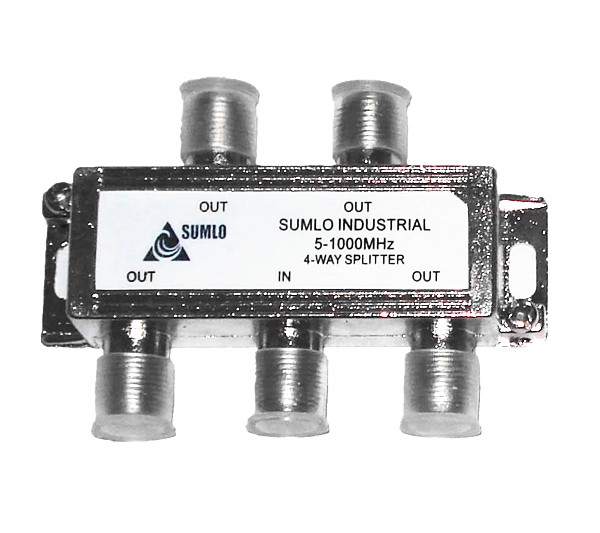

    4-WAY TAP
    Item Unit Parameter

    Distribution Loss

    		Mark and Claim Value dB 12 14 164 18 20 22 24
    Deviation Allowance dB ±1.0

    Insertion Loss

    		5~65MHZ dB ≤4.0 ≤3.8 ≤2.5 ≤2.2 ≤2.0 ≤1.8 ≤1.5
    65~550MHZ dB ≤4.0 ≤3.8 ≤2.5 ≤2.2 ≤2.0 ≤1.8 ≤1.0
    550~750MHZ dB ≤4.3 ≤4.0 ≤2.8 ≤2.5 ≤2.5 ≤2.3 ≤1.8
    750~1000MHZ dB ≤4.5 ≤4.2 ≤3.0 ≤2.8 ≤2.8 ≤2.5 ≤2.0

    Reverse Isolation

    		5~65MHZ dB ≥22 ≥22 ≥30 ≥30 ≥30 ≥30 ≥34
    65~550MHZ dB ≥22 ≥24 ≥30 ≥30 ≥30 ≥32 ≥34
    550~750MHZ dB ≥22 ≥24 ≥26 ≥28 ≥30 ≥32 ≥34
    750~1000MHZ dB ≥20 ≥22 ≥24 ≥24 ≥26 ≥26 ≥26

    Isolation

    		5~65MHZ dB ≥20 ≥22
    65~550MHZ dB ≥25 ≥30
    550~750MHZ dB ≥22 ≥25
    750~1000MHZ dB ≥22 ≥22

    Return Loss

    		5~65MHZ dB ≥16
    65~550MHZ dB ≥16
    550~750MHZ dB ≥16
    750~1000MHZ dB ≥16
    Distribution Loss dB ≥100
