In a cable TV system, the trunk line cable that leads from the headend to a distribution point. Or the cable running between a central office and a distribution point. A distribution cable then leads to the individual subscribers.
Key Benefits
|
Applications
|

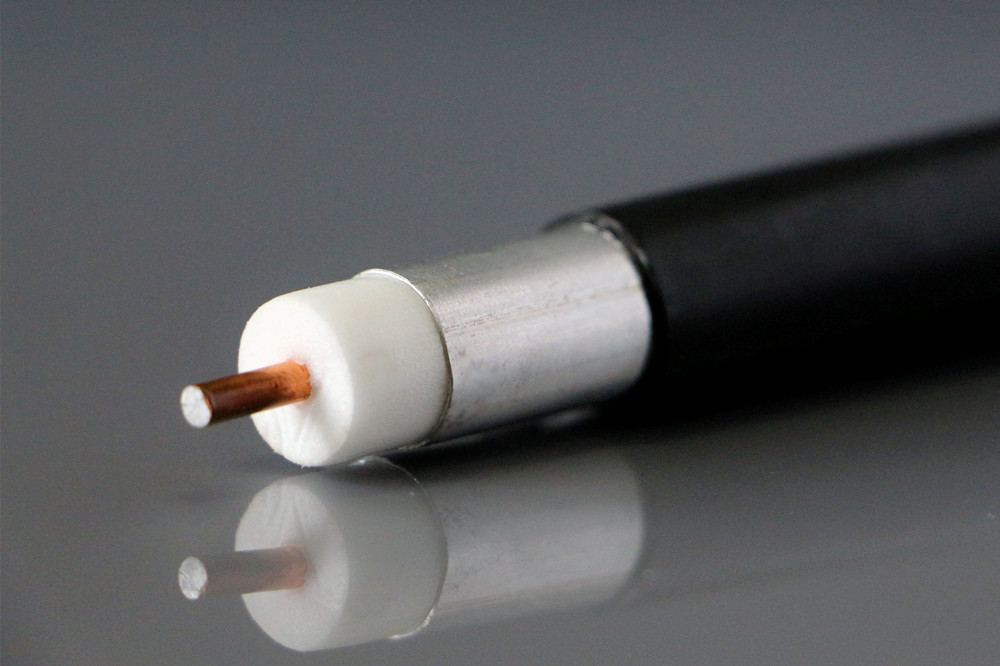

| 540 JCA | 3.15mm CCAL Conductor , AL Tube , 15.49mm PE Jacket ( Black only ) | 50-2150 |  |
540 Pin, SP 540,Trunk KS-KS |

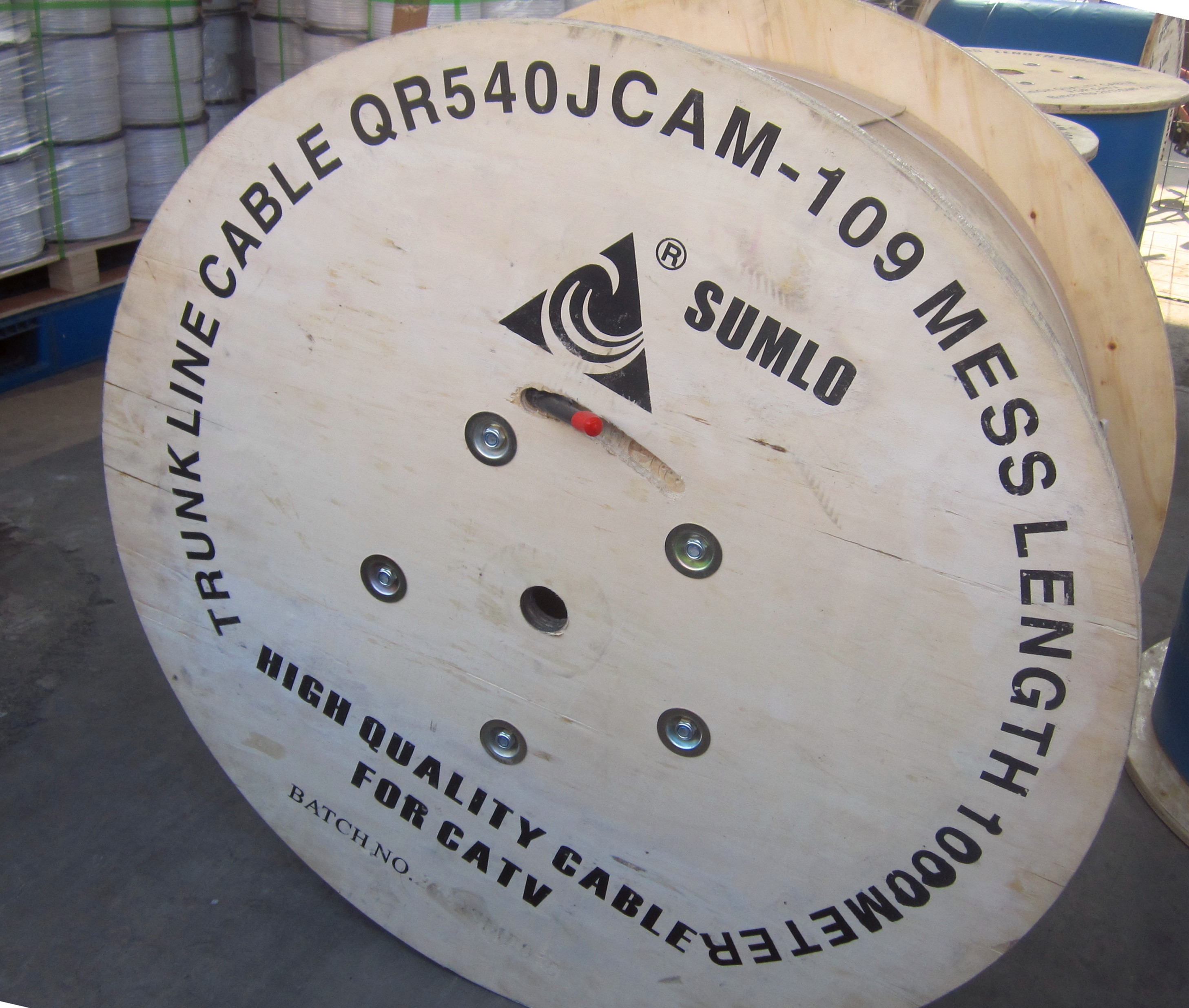

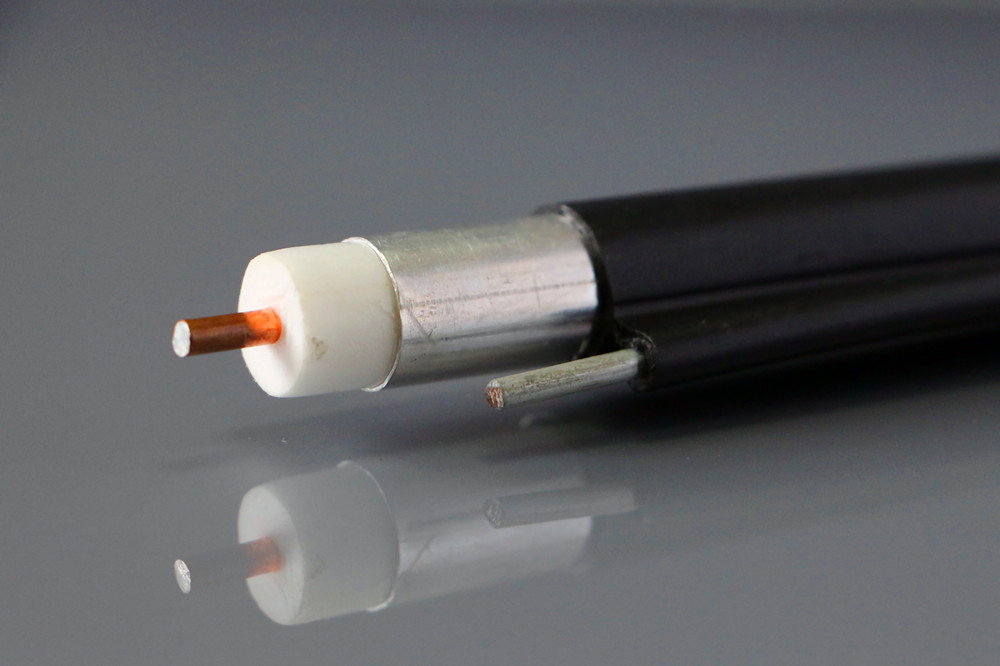

| 540 JCAM-109 | 3.15mm CCAL Conductor , AL Tube , 15.49mm PE Jacket ( Black only ), Messengered | 50-2150 |  |
540Pin , SP 540,Trunk KS-KS |
Attenuation (＠20 ℃)
| Frequency(MHz) | Max Attenuation (dB/100m) |
| 50 | 1.44 |
| 100 | 2.09 |
| 200 | 3.04 |
| 300 | 3.71 |
| 400 | 4.33 |
| 450 | 4.59 |
| 500 | 4.89 |
| 550 | 5.12 |
| 600 | 5.38 |
| 650 | 5.65 |
| 750 | 6.07 |
| 850 | 6.51 |
| 1000 | 7.12 |
