3C-2V

3C-2V, 5C-2V are commonly marked on low cost coaxial cable used for domestic TV signals.
It’s one of the options of the Japanese cable standard JIS C 3501.

  • The 3 indicates approx diameter of the conductive core (=0.5mm)
  • The 5 indicates approx diameter of the conductive core (=0.8mm)
  • The C indicates a characteristic impedance of 75 ohms
  • The 2 indicates a solid PE dielectric core
  • The V indicates a single braided outer conductor (W would be double)

    • Key Benefits

    • High performance
    • Low Losses
    • Low Propagation delays
    • crosstalk dkpt to minnimum
    • Lower Price

    Applications

    • For communication
    • signal control systems
    • Domestic TV signals

    Specifications:

    Item
    Descriptions
    Approved Testing Band Mhz
    Related Connectors

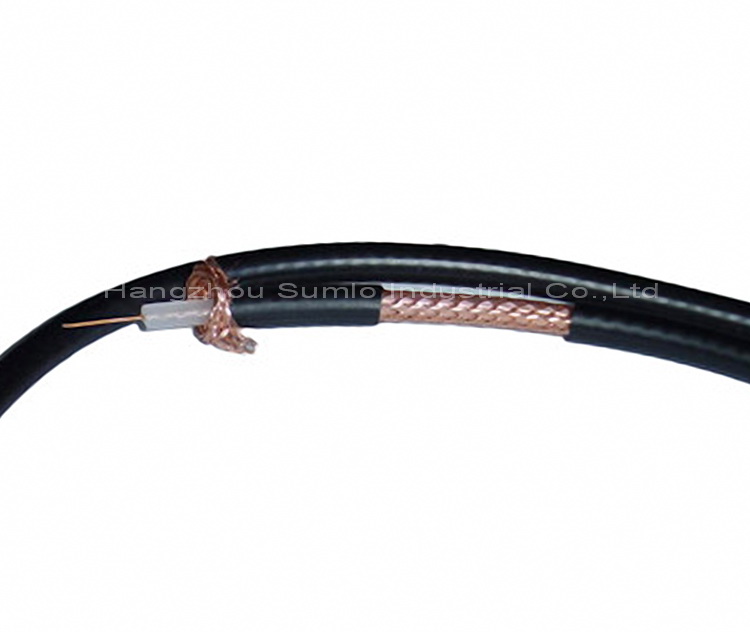

    3C-2V 0.50mm BC conductor , Tinned copper single braid, PVC Jacket (Black only ) 1-100 BNC Crimp ，SMA JACK

    Attenuation (＠20 ℃)

    Frequency (MHz)

    Maximum (dB/100 ft)

    Maximum (dB/100 m)

    1

    0.4

    1.3

    10

    1.31

    4.3

    30

    2.29

    7.5

    200

    6.10

    20.0
