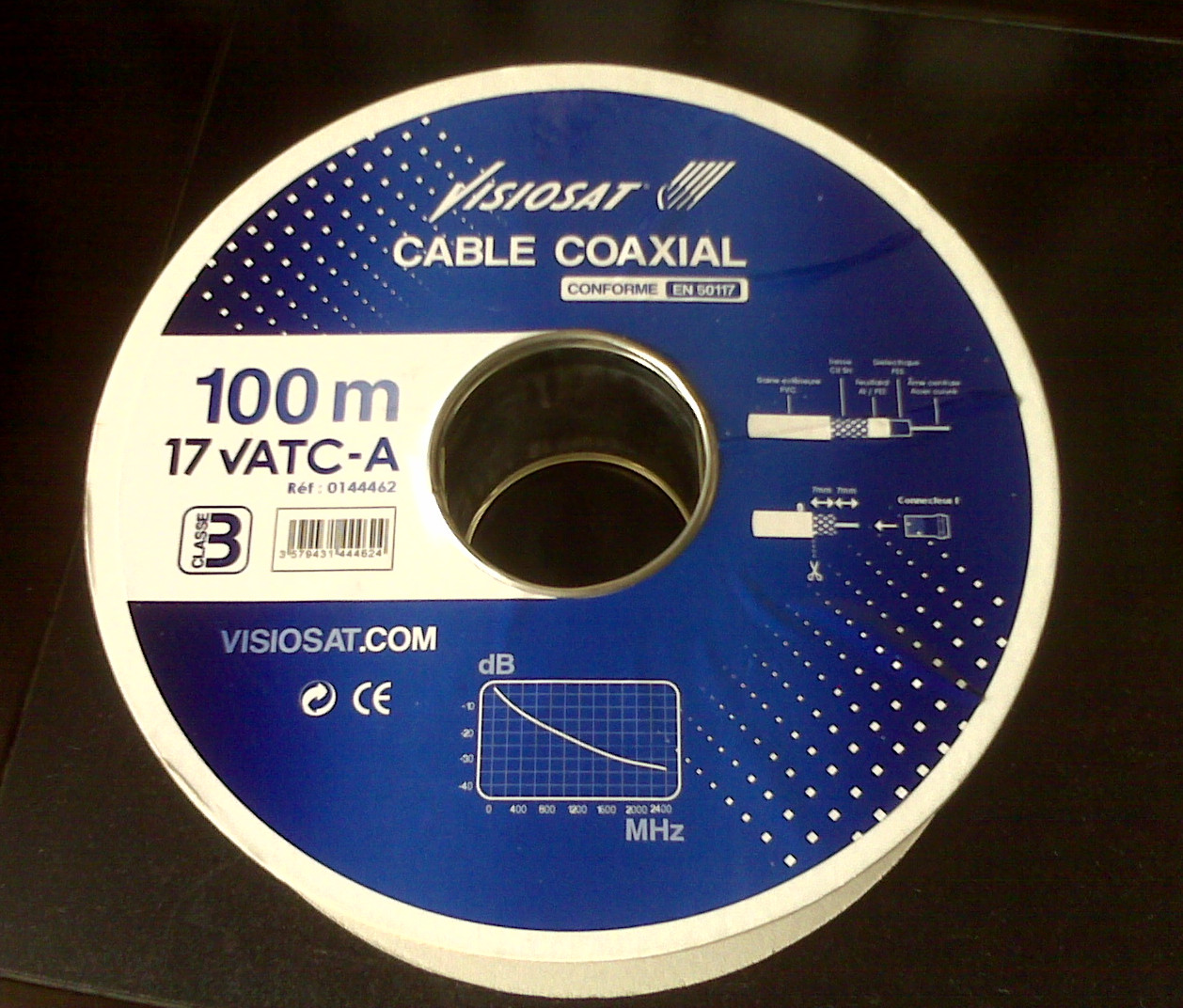

17VATC (PATC)

These cables are France Standard, they used as a distribution cable for indoor CATV (Community Antenna Television),MATV (Master Antenna Television),Digital Video and as a connection cable for satellite systems where lower attenuation required.


Key Benefits

  • High performance
  • Economical design
  • Lower attenuations
  • Easy installations
  • Lower Price

Applications

  • RF signal transmission,
  • MATV, CATV, CCTV,
  • Digital video applications
  • Drop in broadcast.
  • Satellite systems

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors

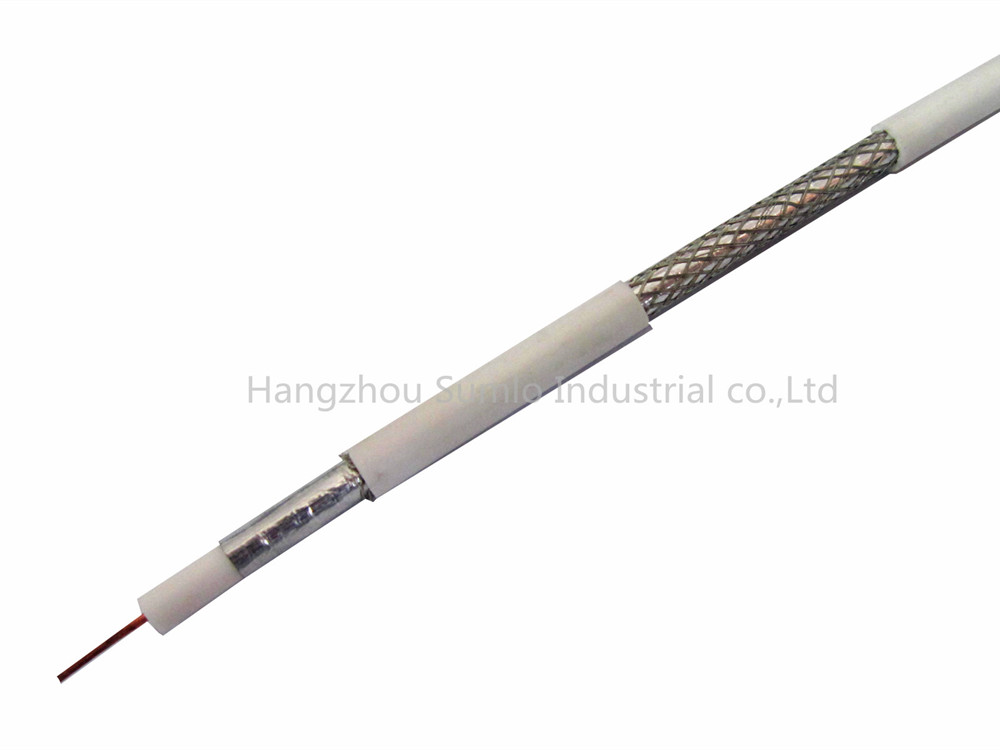

17VATCA 1.13mm CCS conductor , 45% braid, PET foil 100%, PVC Jacket (White only) , Standard Shield 200-1000 IEC male to FF , IEC male spiral TV Jack，F6 Twist
17PATCA 1.13mm CCS conductor , 45% braid, PET foil 100%, PE Jacket (Black only) , Standard Shield 200-1000 IEC male to FF , IEC male spiral TV Jack，F6 Twist




Attenuation (＠20 ℃)

Frequency(MHz) Max Attenuation (dB/100m)
47 4.30
100 5.80
230 8.65
300 9.70
400 11.30
800 16.50
860 17.40
1000 19.00
1350 22.50
1750 25.80
2150 29.50
